Position the Center Link

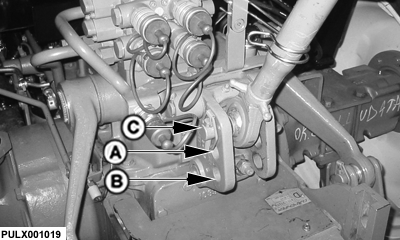

PULX001019-UN-07AUG08

The center link bracket has holes which allow three different positions for attaching the center link. The position effects the draft sensing sensitivity.

Move the center link attachment to holes (A) or (C) if:

• Excessive hitch activity or hunting occurs in draft control operation.
• The rear of the implement raises too much when lifted. The lowest position provides the greatest lifting height and less lifting force and should be used when working with a plow.
• The draft control lever range is too small.

Move the center link attachment to holes (A) or (B) if:

• The hitch response in draft control operation is unsatisfactory and the engine speed drops too far before raising the implement.
• The rear of the implement droops and drags the ground as the implement is lifted.
