Adjusting Front Axle Tread Width

LV810
LV810-UN-08JUL94

PULX002175
PULX002175-UN-16OCT08

  1. IMPORTANT: DO NOT place jack under engine oil pan.

    Jack up front end of tractor.

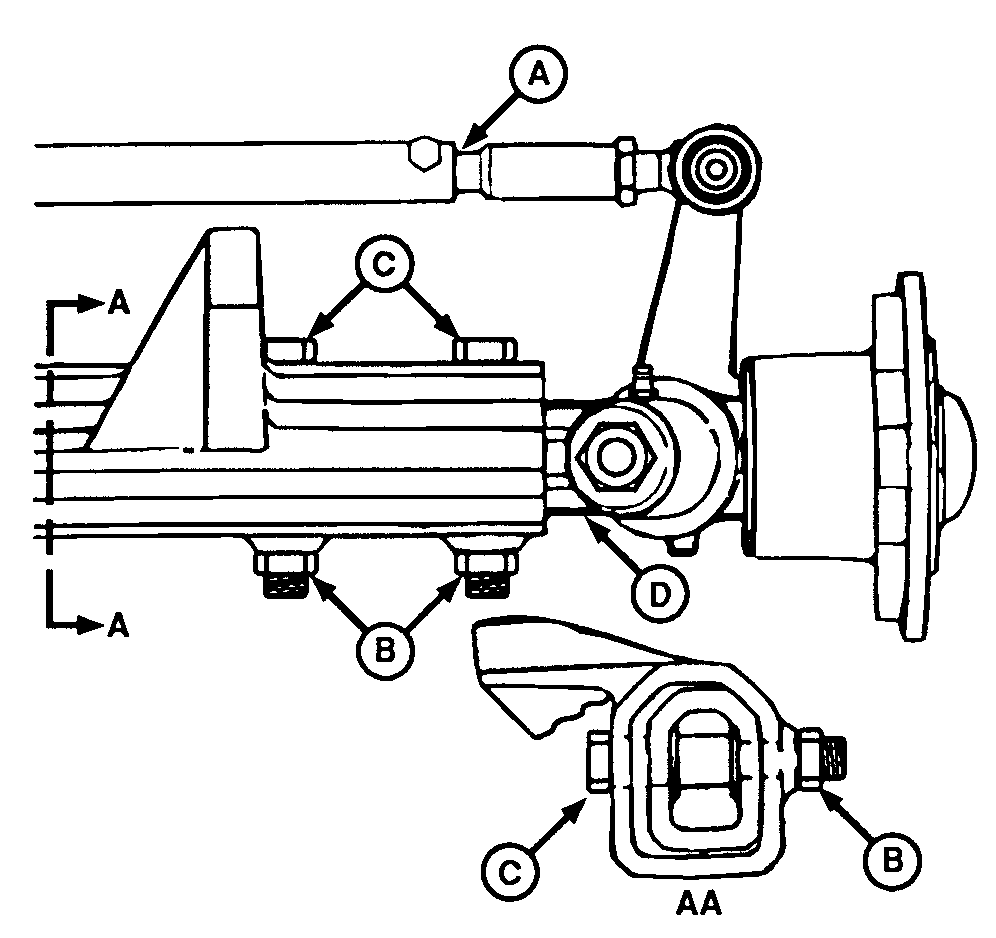

  2. When making large tread adjustments it may be necessary to change the tie rod length (A) before or during axle adjustments. See Check Toe-In and Adjust Toe-In in this Section.

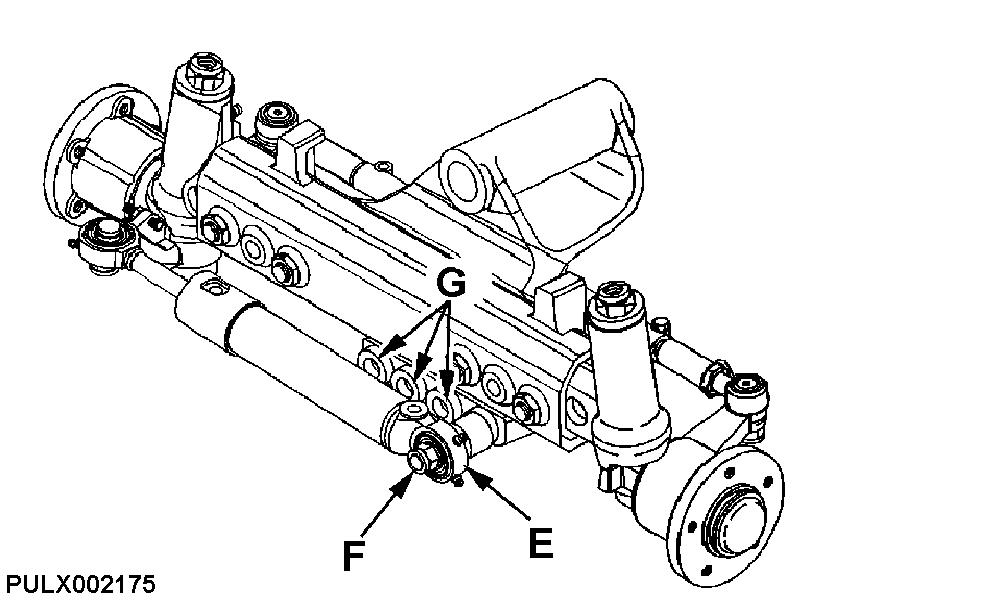

  3. Change the steering cylinder (E) anchoring position to axle body in relation to the change of tread width using the available holes (G). Tighten lock nut (F) to 250 N˙m (184 lb-ft.)

  4. Remove nuts (B), cap screws (C) and bushings from front axle (two on each side).

  5. Slide axle knees (D) to desired position. Both sides should be adjusted to the same spacing.

  6. Reinstall cap screws (C), bushings and nuts (B) on each side. Tighten hardware to 150 N˙m (110 lb-ft).

  7. Set toe-in. Refer to Check Toe-In and Adjust Toe-In for your axle type in this Section.

NR25796,0001783-19-20090122
