Lubricate Front Axle King Pins
PULX001618-UN-22SEP08

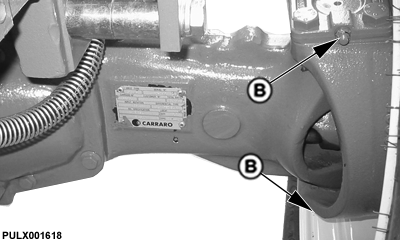

On tractors equipped with front wheel drive axle, apply several
shots of multipurpose grease to upper and lower front axle king pin
fittings (B).
PULX001646-UN-26SEP08
PULX001644-UN-26SEP08
PULX001638-UN-26SEP08

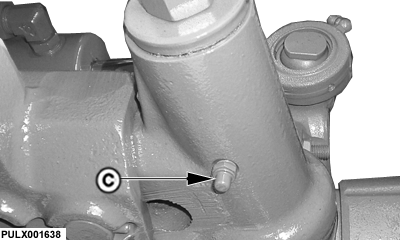

On tractors equipped with adjustable front axle, apply several
shots of multipurpose grease to fittings (A) to (C).
|
|
NR25796,00017E9-19-20090326
|
|
