Lubricate Front Axle Pivot Pin

AGGCJD0043-UN-29SEP15

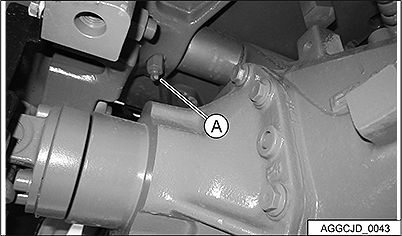

Front Pivot Pin Grease Fitting — Tractors with Front Wheel Drive

AGGCJD0042-UN-29SEP15

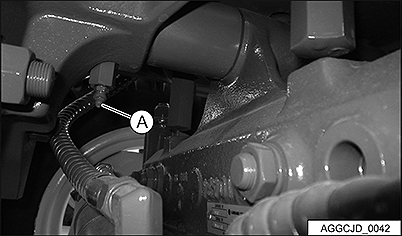

Pivot Pin Grease Fitting — Tractors without Front Wheel Drive

Lubricate grease fitting (A) for front axle pivot pins with several shots of multipurpose grease (see Section 80 Fuel, Lubricants, Hydraulic Oil and Coolant).
