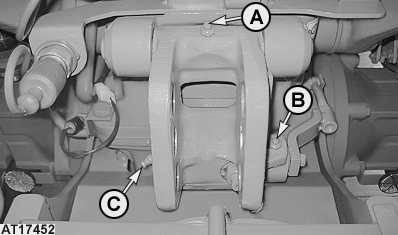

Lubricate Center Link Bracket
AT17452-UN-16JUL07
A - Grease fitting
B - Grease fitting
C - Grease fitting
Lubricate grease fittings (A), (B) and (C) of center link bracket with several strokes of multipurpose grease (see Section 80 ”Fuel, Lubricants, Hydraulic Oil and Coolant”).|
OULXA64,0000BF3-19-20070712 |
