Electronic Hitch Sensing II (EHS II)

AT15965-UN-06MAY08

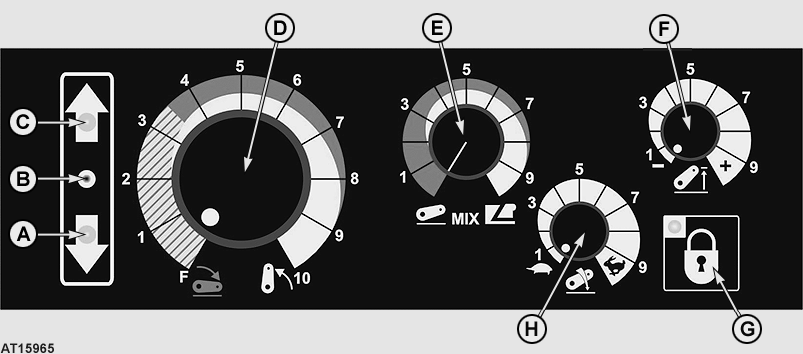

EHS II control panel

A - Hitch movement indicator LED ”hitch lowering”

B - Hitch movement indicator LED ”hitch stop”

C - Hitch movement indicator LED ”hitch raising”

D - Depth control switch

E - Mode control switch

F - Height limit memory switch

G - Transport lock switch (with red LED)

H - Lowering speed control switch

NOTE: A continuous flushing LED (B) indicates that there are Diagnostic Trouble Codes present. See “Hitch, Diagnostic Trouble Codes” in tSection “Troubleshooting”.
