Load/depth adjustment (EHS II)

CAUTION: Before connecting implements to the three-point hitch, load/depth control must be moved to the fully counterclockwise position (depth control) to prevent unintentional raising or lowering of the hitch.

AT15968
AT15968-UN-09OCT06

Fix control position

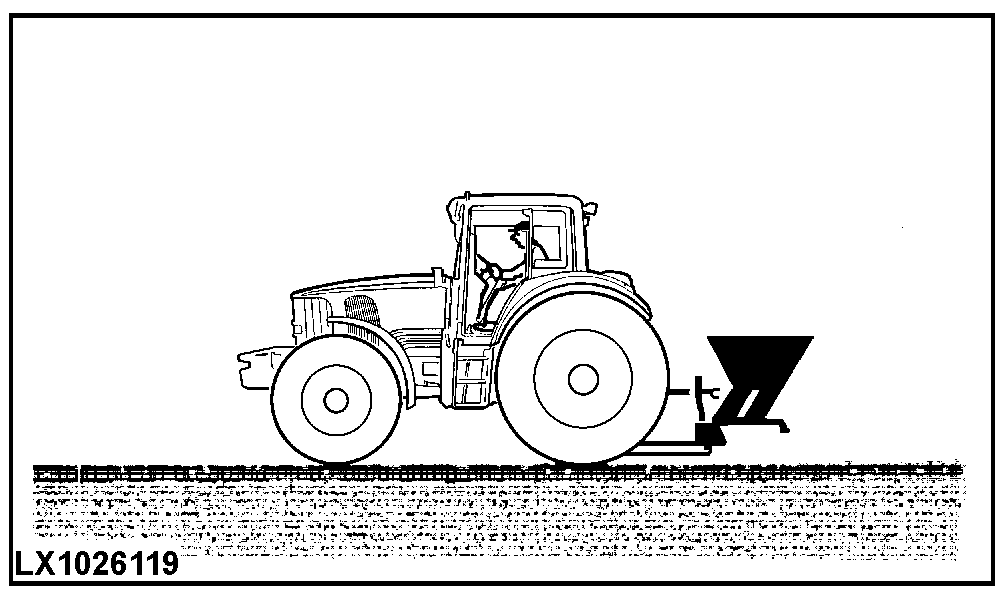

LX1026119
LX1026119-UN-10MAY01

Position control

With load/depth control in the fully counterclockwise position, the implement is held at the selected position.

AT15994
AT15994-UN-09OCT06

Load control position

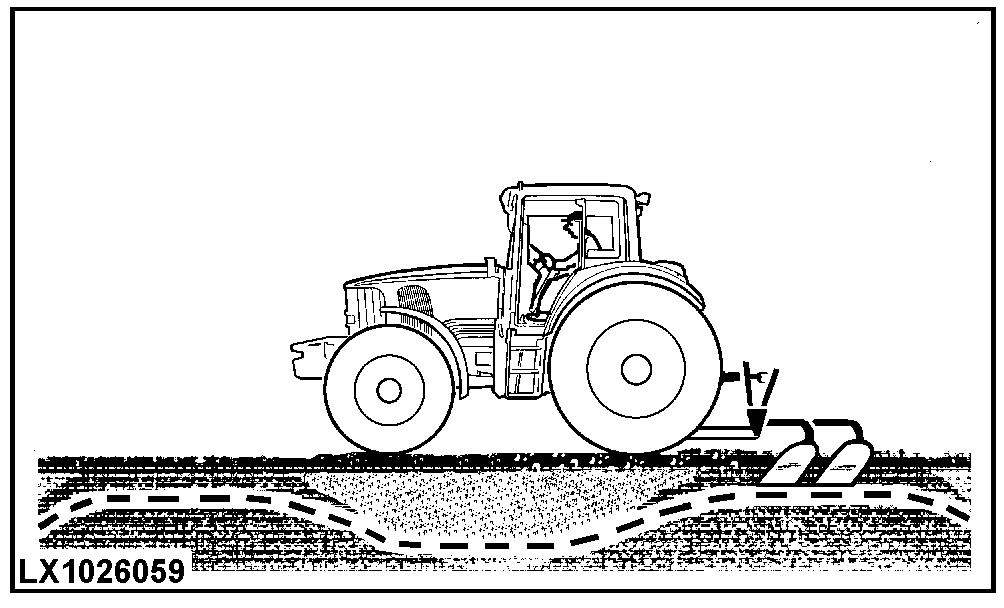

LX1026059
LX1026059-UN-18MAY01

Load control

With load/depth control in fully clockwise position, the implement is raised as resistance (soil density) increases and lowered as resistance decreases, thus maintaining the preselected load.

AT15995
AT15995-UN-09OCT06

Mixed control position

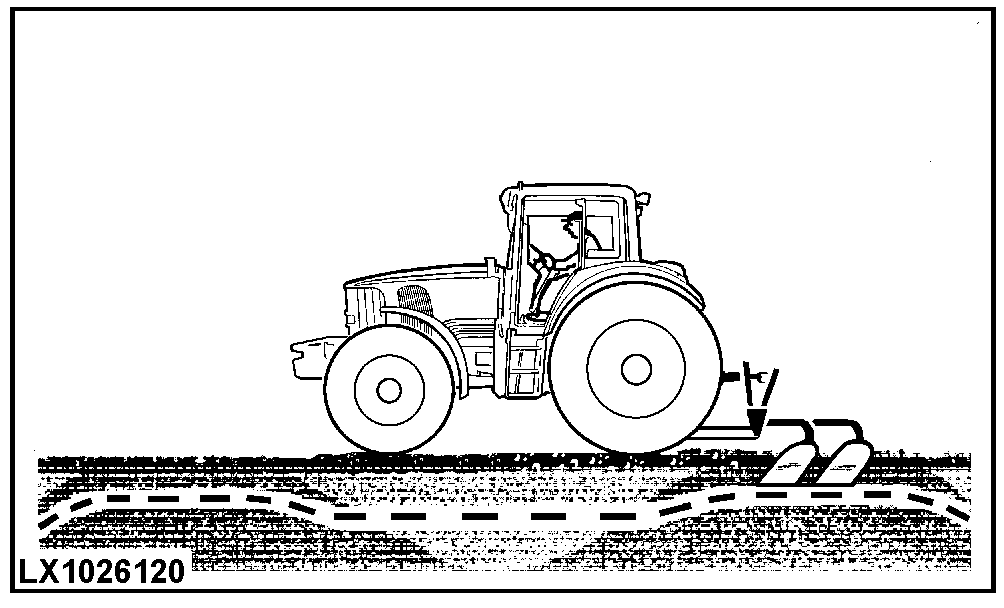

LX1026120
LX1026120-UN-10MAY01

Mixed control

The "MIX" positions of the load/depth control allow the effects of depth control and/or load control to be infinitely varied as the ground conditions require.
