Raise/Lower Switch (EHS II)

AGGCJD0014
AGGCJD0014-UN-29SEP15

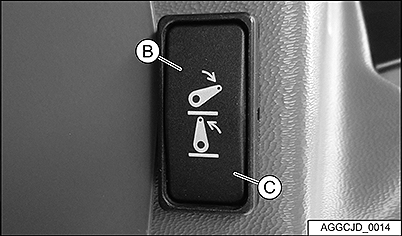

Raise/lower switch

B - Lower

C - Raise

To raise the hitch press the raise symbol (C) on the switch, to lower the hitch press the lower symbol (B). The relevant LED on the EHS control panel lights up.

Whenever it is necessary, the movement of the hitch can be stopped immediately by a short pushing on the raise switch or lower switch.

The switch does not operate when transport lock is activated.

OULXA64,00019B3-19-20151001
