Reduce Fuel Consumption


Service Correctly

LX007829
LX007829-UN-15AUG94

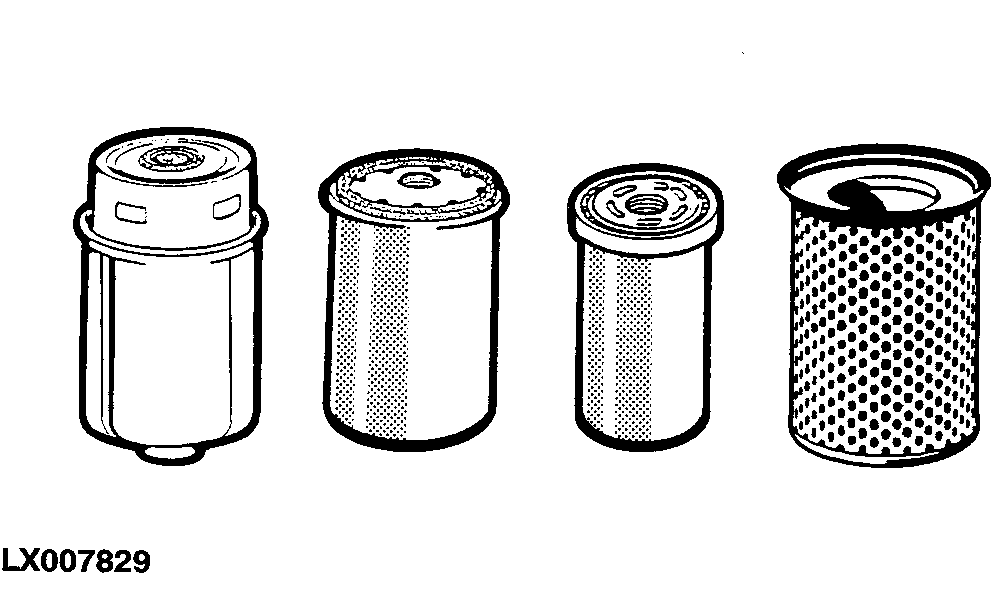

Replace air cleaner element and fuel, engine oil and transmission/hydraulic filter elements at specified service intervals (see “Service” section).

Use only John Deere filters!

L103642
L103642-UN-15AUG94

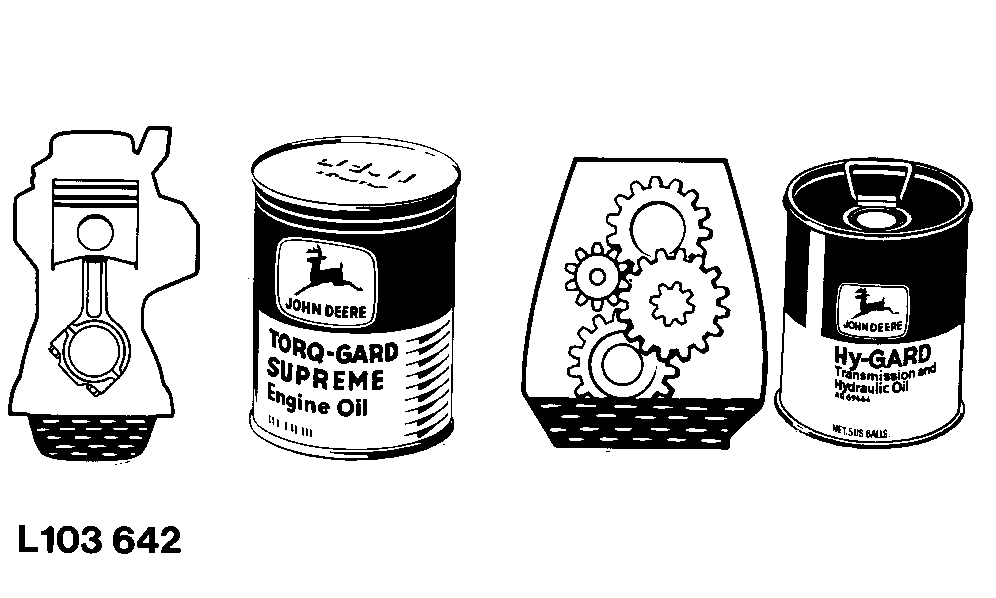

Use recommended oils and lubricants only (see Fuel, Lubricants, Hydraulic Oil and Coolant section).

LX000347
LX000347-UN-15AUG94

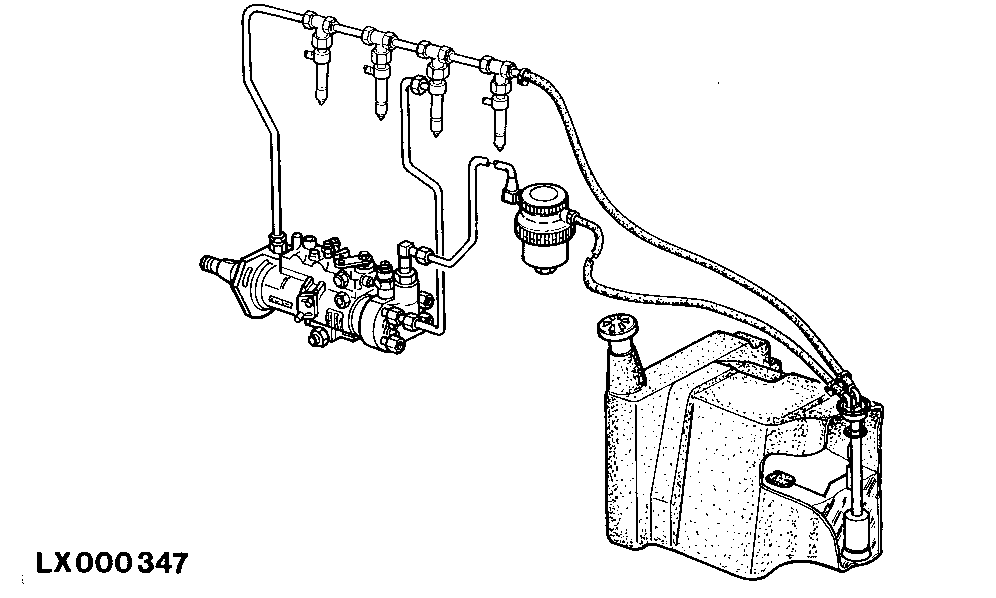

Have the fuel system checked regularly by your John Deere dealer.

LX1026059
LX1026059-UN-18MAY01

Have function of hitch control checked regularly by your John Deere dealer.

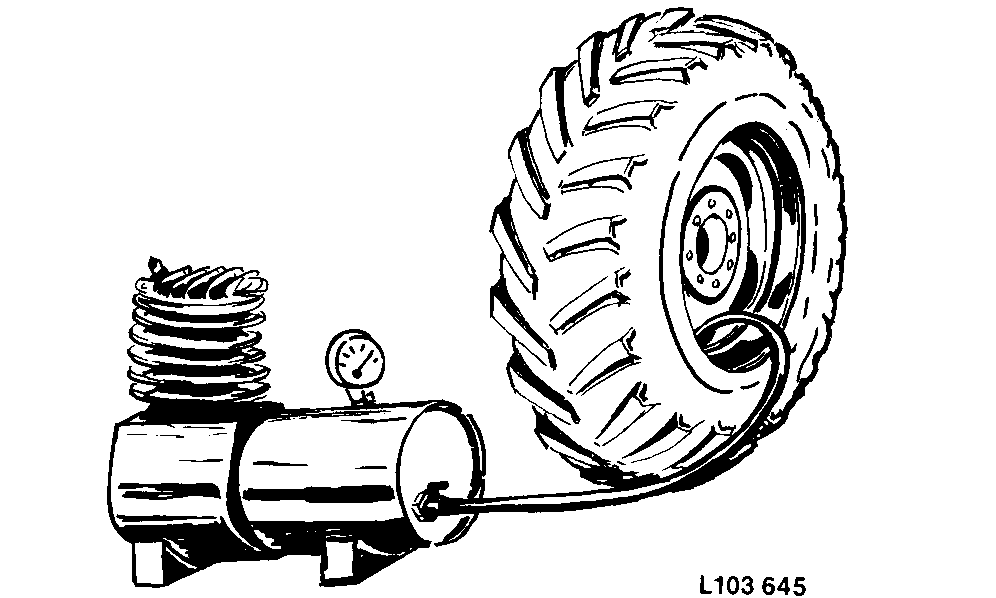

Drive with Correct Tire Pressures

L103645
L103645-UN-15AUG94

Adapt tire pressures to type of work and ground conditions (consult your John Deere dealer or local tire agent).


Choose Correct Ballast

LX009185
LX009185-UN-01SEP94

LX009186
LX009186-UN-01SEP94

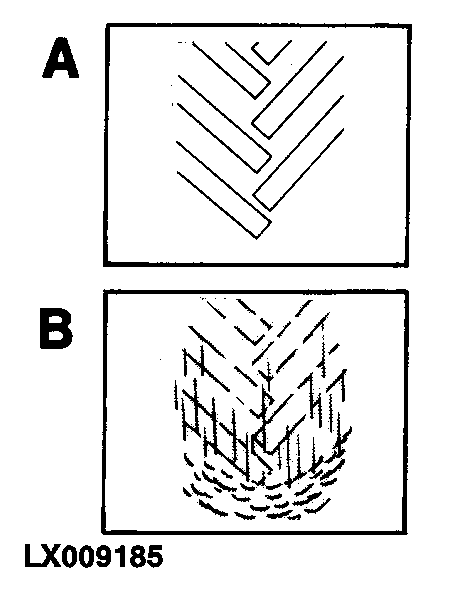

A - Too much ballast

B - Too little ballast

C - Correct ballast

Choose ballast to obtain 10 to 15 % wheel slip. Use no more ballast than necessary, reduce ballast for light work.


Select Correct Gear

LX1017710
LX1017710-UN-01OCT97

Always drive in the highest possible gear with reduced engine speed.

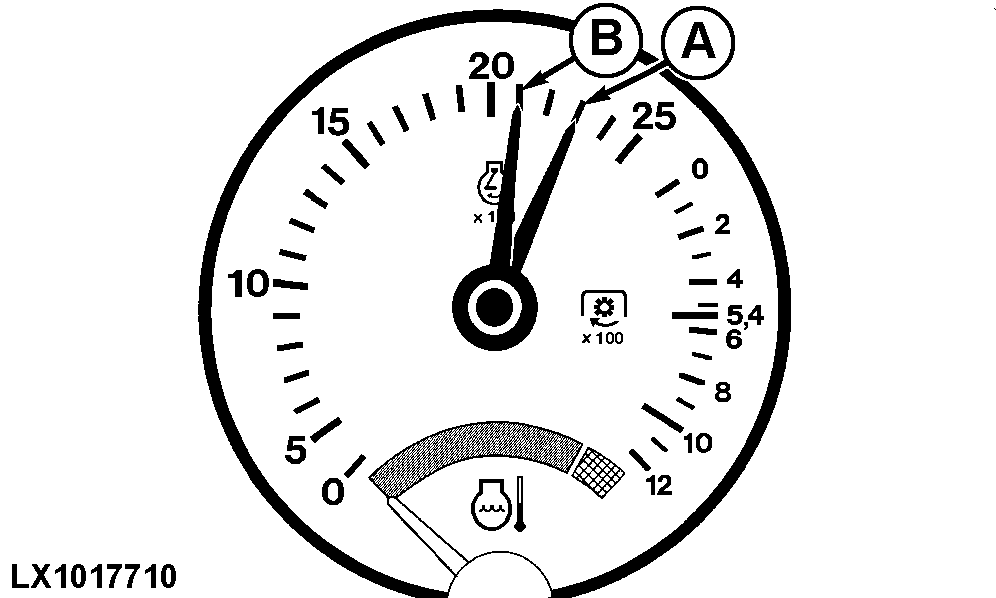

Choose a gear so that engine speed (A) with engine not under load drops 150 to 250 rpm when the tractor is operating and the engine is under load (B).

NOTE: For light work, reduce engine speed below 2000 rpm. Select a gear so that engine speed drops 200 to 300 rpm when operating.

OULXBER,000200D-19-20130131
