Installing Front Weights

AGCPTJD0027-UN-21MAY13

PULX000177-UN-04MAR08

A - Screw (4 used)

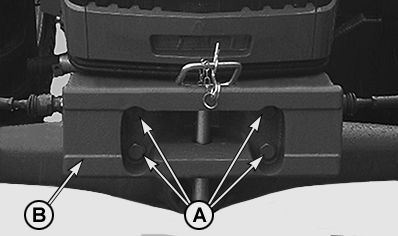

B - Basic weight

C - Screw (2 used)

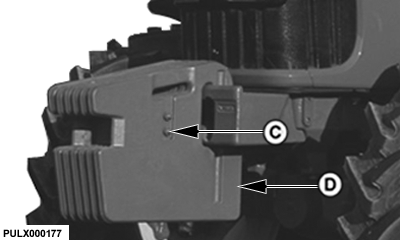

D - Front weight

IMPORTANT: Tighten the basic weight attaching screws (A) to 390 N˙m (287 lb-ft) and the screws (C) on front weights (D) to 230 N˙m (170 lb-ft).

Install the basic weight (B) with screws (A) and place additional weights (D) as required. Secure them with screws (C).

IMPORTANT: When installing six or more front weights, they must be installed to form a jaw.
