Drawbar

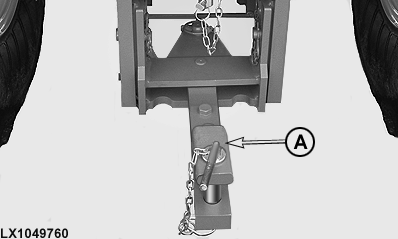

LX1049760-UN-15JUL10

The tractor is equipped with a drawbar with vertical load allowed (A).

For maximum traction and efficiency, drawbar should be positioned in the center, short position (see implement operator's manual for more information).

Maximum permissible static vertical loads and towable drawbar loads are stated in the Specifications section.

NOTE: Have components that are subject to wear checked and replaced (if necessary) by your John Deere dealer (see Service — Every 500 Hours).

NOTE: Towing on public roads with the swinging drawbar set to one side is not permitted!
