Height Adjustable Trailer Hitches

These hitches can be adjusted up or down according to the implement height and to obtain clearance for the center link or PTO operation.

Depending on legal requirements in the different countries, hitches of EEC or CUNA type are available.


Adjust sliding hitch height

PULX003110
PULX003110-UN-22JAN09

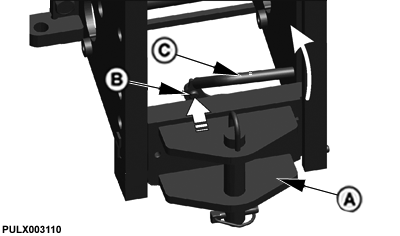

CUNA Hitch

PULX003112
PULX003112-UN-22JAN09

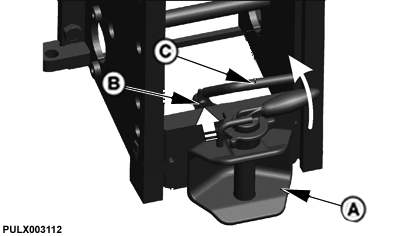

EEC Hitch

CAUTION: Use the CUNA hitch system for trailers with pivoting towing eyes only.

CAUTION: Use the EEC hitch system for trailers with non-pivoting towing eyes only.

  1. . Support hitch (A) with one hand and with the other hand simultaneously pull pin (B) and release lever (C) to the left.

  2. Move hitch (A) to the required position and push the quick release lever (C) to the right and down to lock it.

  3. Make sure that the side locking pins have fully

    engaged in the side support slots.

NOTE: If necessary, hitch (A) can be removed by pulling it out from the top.

Maximum permissible static vertical loads and towable drawbar loads are stated in the Specifications section.

NOTE: Have components that are subject to wear checked and replaced (if necessary) by your John Deere dealer. See Service — Every 500 Hours.
