PTO Controls

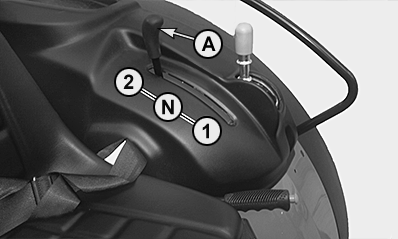

AGCPTJD0402-UN-12JUL13

5GL, PTO controls

AGCPTJD0594-UN-31JAN14

5GV, 5GN and 5GF, PTO controls

A - PTO Mode Selector Lever

The PTO mode selector lever (A) allows the PTO to be operated in the following modes:

N - Neutral

1 - Ground Speed PTO

2 - Independent PTO Speed

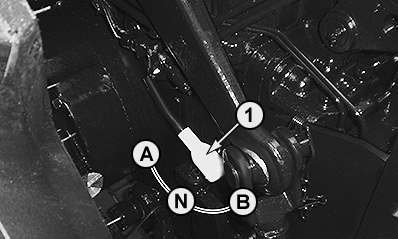

AGCPTJD0610-UN-27OCT14

5GV, 5GN and 5GF, PTO Speed Selector Lever

1 - PTO speed selector lever

N - Neutral

A - 540 rpm

B - 750 rpm (540E) or optional 1000 rpm

IMPORTANT: The PTO speed selector lever must only be used when no equipment is connected to the PTO.
