Seat Adjustment

AGCPTJD0380-UN-11JUL13

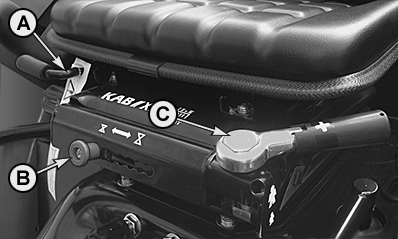

Adjusting Operator's Seat Position for Tractors with ROPS

Seat fore-and-aft adjustment: Move lever (A) and slide seat forward or backward to desired position.

Seat height adjustment: While sitting on the seat turn knob (B).

Seat suspension adjustment: Turn the lever (C) to the desired vertical travel range.
