Check Transmission/Hydraulic System Oil Level

AGCPTJD0377-UN-11JUL13

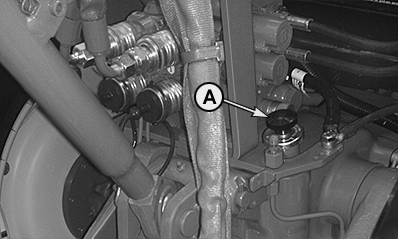

Remove dipstick (A), wipe clean and reinsert it fully. Then remove dipstick again and check the Oil level. Add oil if level is not between full mark and end of dipstick. Do not overfill the Transmission/Hydraulic System.

Proceed as described in ”Checking Transmission/Hydraulic System Oil Level” in Section ”Service - Daily or Every 10 Hours”.

If using implements that require a greater quantity of oil in the hydraulic circuit, the oil level must be up to mark ”XXX”.
