Driving Tractor on Public Roads

CAUTION: When driving on a public road, use accessory lights and devices for adequate warning to operators of other vehicles. Check local governmental regulations. Various safety devices are available from your John Deere dealer. Keep safety items in good condition. Replace missing or damaged items.

NEVER operate rear facing work light when transporting tractor. A clear bright light at the rear of the tractor could confuse drivers of other vehicles as they approach from the rear.

Before operating tractor on a road, lock brake pedals together. Use brake lightly and cautiously at transport speeds.

AGCPTJD0354-UN-10JUL13

IMPORTANT: Refer to Section Lights for detailed descriptions of lighting operations and functions.

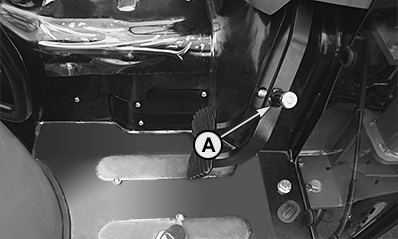

1. Couple brake pedals together using locking pin (A). Avoid hard applications of brakes. Reduce speed if towed load weighs more than the tractor and is not equipped with brakes (refer to implement operator's manual for recommended transport speeds).

2.
   AGCPTJD0355-UN-11JUL13


   AGCPTJD0356-UN-11JUL13

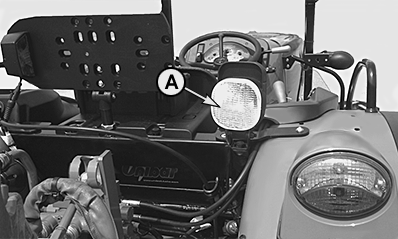

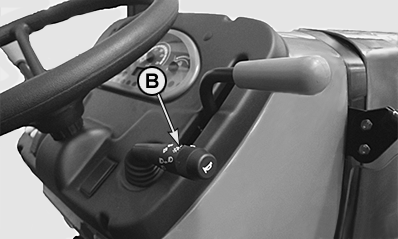

   Turn the light switch (B) to the full beam headlights or the low beam headlights position. Never use rear work lights (A). Always dim headlights before meeting another vehicle. Keep headlights properly adjusted.

---




3. Use turn signals when turning. Be sure to return turn signal switch to center position after turning.

4.
   AGCPTJD0357-UN-11JUL13

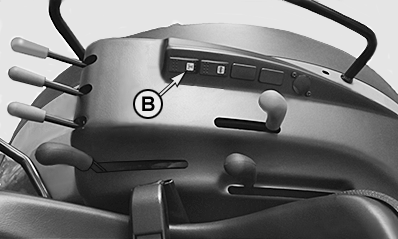

   Disengage front-wheel drive using switch (B). Driving on hard surfaces with front-wheel drive engaged will result in excessive wear of front tires.

---




5. Do not engage the differential lock. See Use Differential Lock in this Section.

6. Drive slowly enough to maintain control at all times. Slow down for hillsides, rough ground, and sharp turns, especially when transporting heavy, rear mounted equipment.

7. Before going down a hill, shift to a gear low enough to control speed without using brakes. Never coast downhill.

8. When driving downhill on icy or graveled grades, be alert for skids which could result in loss of steering control. To decrease chance of skids, reduce speed and be sure tractor has proper ballast.

9. Use additional caution when transporting towed loads under adverse surface conditions and when turning or braking on inclines. Be sure wheel tread is adjusted wide to provide maximum stability.
