Operating the Rear PTO (Mechanical Version)

AGCPTJD0345-UN-10JUL13

AGCPTJD0412-UN-15JUL13

1. NOTE: Engine will not start if PTO clutch lever is engaged.

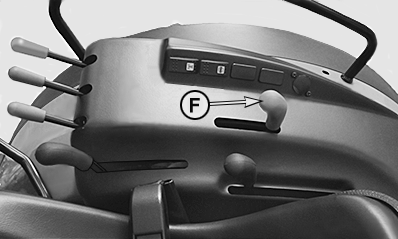

   Start engine and, using hand throttle lever (F), select correct engine speed for PTO operation.

   Rated PTO speeds are achieved at the following engine speeds:

   540 rpm rear PTO..............	1938 rpm
   540E rpm rear PTO..............	1648 rpm
   1000 rpm rear PTO..............	1962 rpm

   NOTE: Direct reading of PTO rpm value is possible on digital display (H) when the PTO is engaged.

2.

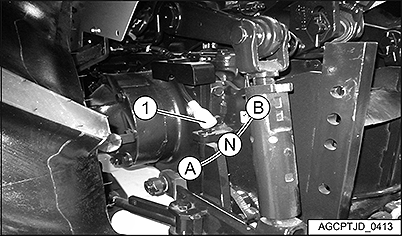

   AGCPTJD0413-UN-02NOV15

   Select the PTO speed if the tractor is equipped with 540 and 540E or 540 and 1000 PTO option. Move lever forward (B) for 540 or rearward (C) for 540E or 1000 operation. Position (A) is neutral. This lever is on left side control console. If dual speed PTO is not provided, this lever will not be installed.

   IMPORTANT: The PTO speed selector lever must only be used when no equipment is connected to the PTO.

---




3.
   AGCPTJD0414-UN-12JUL13


   AGCPTJD0415-UN-15JUL13

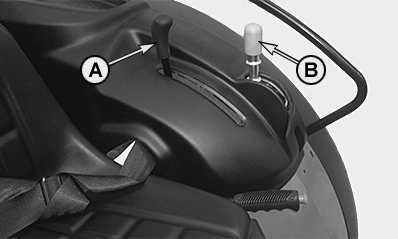

   A - PTO Mode Selector Lever

   B - PTO Engagement Lever

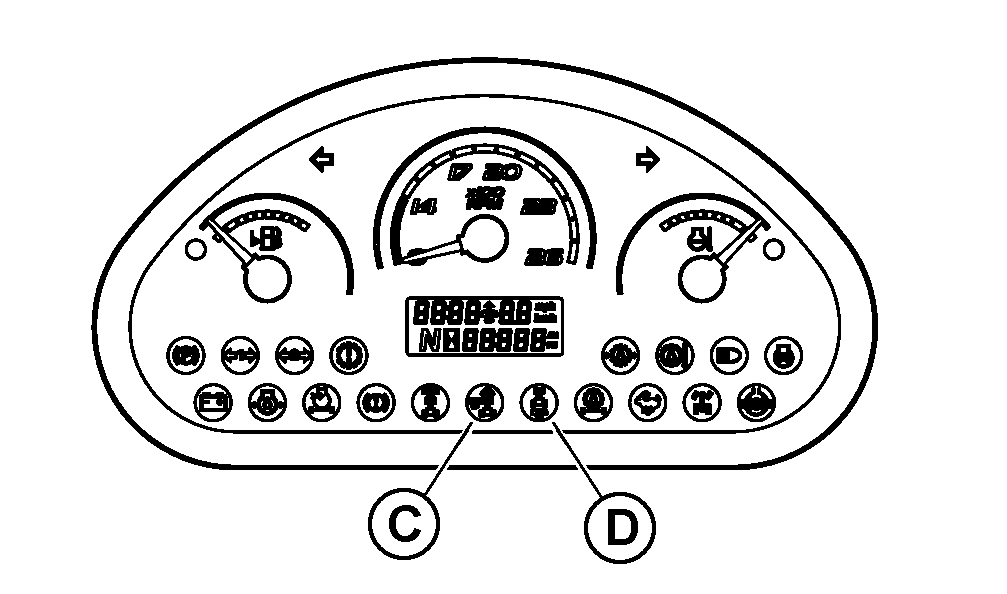

   C - Ground Speed PTO Indicator

   D - PTO Indicator

   Make sure that PTO mode selector lever (A)¹ on the left side is in rear position (PTO operation dependent on engine speed).

---




4. Move PTO engagement lever (B) forward to engage PTO.

   PTO indicator (D) will light up when the PTO is engaged.

5. CAUTION: Turn key off to stop engine and make sure all mechanisms have stopped before cleaning out machine or making any adjustments to PTO driven implement.

   Pull lever (B) back to disengage PTO.

   For ground speed PTO operation move PTO mode selector lever (A)¹ forward. For this operation the tractor has to be stopped. If coupling is not possible move tractor slowly forward to allow the gears to connect. In this case, PTO engagement is independent from position of PTO engagement lever (B). If ground speed PTO is engaged, the ground speed PTO indicator (C ) will glow.

   If PTO ground speed mode is activated, the PTO engagement lever (B) has no effect.

   CAUTION: Even if PTO engagement lever (B) is in disengaged position, the PTO will turn when moving the tractor.
