Change Transmission/Hydraulic Oil and Suction Strainer

PULX001277
PULX001277-UN-03SEP08

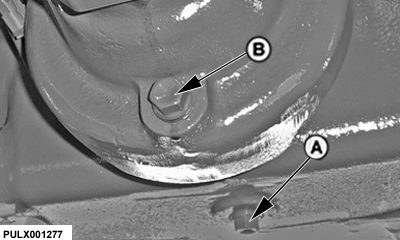

Remove drain screw (A) from transmission case and drain oil. On tractors equipped with front wheel drive, also remove drain screw (B). Lower hitch to remove trapped oil.

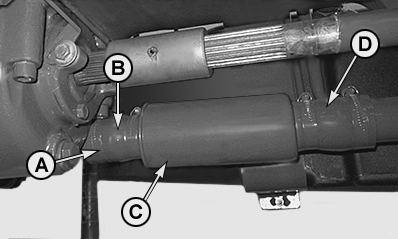

Remove the four clamps (A) and hoses (B) and (D).

AGCPTJD0508
AGCPTJD0508-UN-27AUG13

Replace strainer (C) with a new one.

Make sure that the arrow on the strainer body points forward.

Re-install the clamps (A).

Fill transmission with specified transmission/hydraulic oil (see section Fuel, Lubricants, Hydraulic Oil and Coolant) as described in Check Transmission/Hydraulic System Oil Level in Section Service — Daily or Every 10 Hours.
