Alternator Indicator Light

AGCPTJD0341
AGCPTJD0341-UN-15JUL13

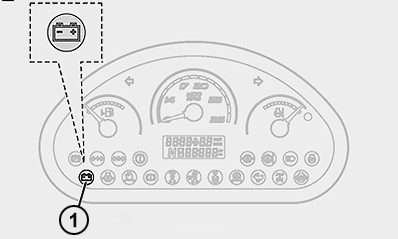

The alternator indicator light (1) will glow when alternator output is low. Indicator light should glow when key is turned to engage starting motor and go out when engine starts.

If indicator light glows longer than 5 seconds under normal operating conditions, stop engine and check for cause. If loose or broken fan belt is not the cause, see your John Deere™ dealer.
