Coolant Temperature Gauge

AGCPTJD0343-UN-15JUL13

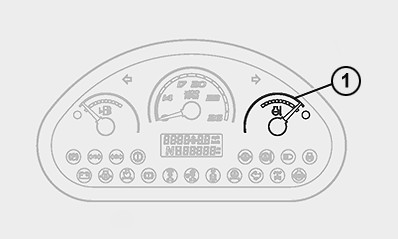

The needle on the coolant temperature gauge (1) rises as engine warms up. If needle reaches red zone, stop engine and determine the cause.

Check coolant level in coolant expansion tank and radiator when engine cools. Also check grille, radiator and radiator screen for plugging. Check fan belt tension. If problem is not corrected, see your John Deere™ dealer.
