Stop the Tractor

AGCPTJD0360
AGCPTJD0360-UN-11JUL13

  1. CAUTION: Always engage park brake before dismounting tractor. Leaving transmission in gear with engine stopped, without engaging park brake, DOES NOT prevent tractor from moving.

    Stop tractor using brakes.

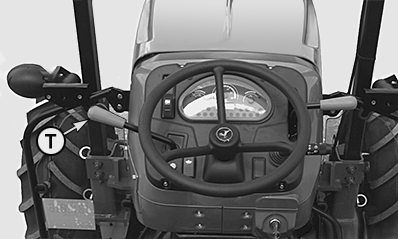

  2. Place reverse drive lever (T) in neutral position.

  3. AGCPTJD0369
    AGCPTJD0369-UN-11JUL13

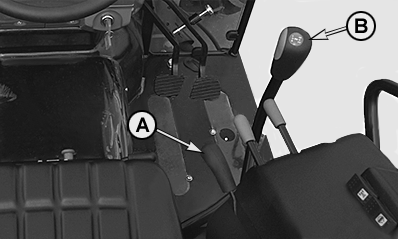

    Place gear shift lever (B) in neutral position.


  4. Lower equipment to the ground using hitch control lever (A).

  5. AGCPTJD0370
    AGCPTJD0370-UN-11JUL13

    AGCPTJD0371
    AGCPTJD0371-UN-15JUL13

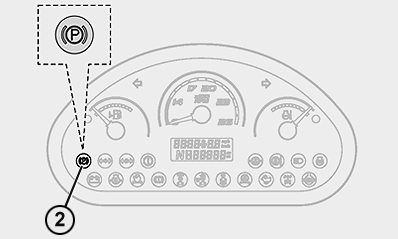

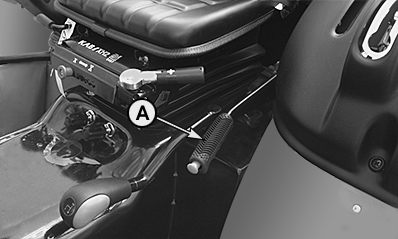

    Pull lever (A) up to engage park brake. Lever will lock in raised position and park brake indicator light (2) will glow.

OULXBER,000225E-19-20131104
