Hydraulic Trailer Brakes

AGCPTJD0372-UN-11JUL13

AGCPTJD0373-UN-15JUL13

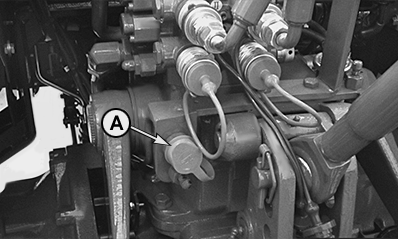

Remove cap from trailer brake coupler (A) and connect pressure hose, making sure connections are absolutely clean.

Depress brake pedals to operate hydraulic trailer brake. The braking effect depends on pressure applied to the brake pedals.

CAUTION: Never exceed a speed of 25 km/h (15 mph) when travelling with hydraulically braked trailers.

IMPORTANT: To prevent undue wear on the brakes, observe the following points:

Make sure that the pressure hose is connected.

When driving downhill, select the same gear you would for driving uphill.

Check the hydraulic trailer brake regularly to make sure that it is functioning correctly.

NOTE: The tractor's park brake has no effect on the hydraulic trailer brake. Operate the trailer in accordance with the manufacturer's instructions. This is particularly important when operating the park brake of the trailer.

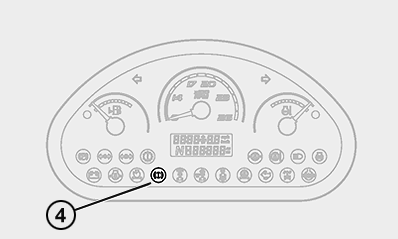

Indicator light (4) will light up when the oil level in the brake reservoir is low.
