Level the Hitch

PULX003107-UN-21JAN09

1. Lower implement to take weight off hitch.

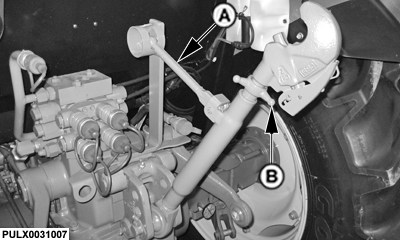

2. Adjust center link to level implement front to rear:

   Unlock locking rod (A). Loosen ring nut (B). Rotate center link body clockwise to lengthen center link or counterclockwise to shorten it.

   Length of link must be kept within the following limits (measured at the center link ends):

   • Minimum length 518 mm (20.4 in.)
   • Maximum length 718 mm (28.3 in.)



   Depending on the tractor configuration adjust to:

   • Minimum length 530 mm (20.87 in.)
   • Maximum length 730 mm (28.74 in.)



   IMPORTANT: DO NOT deviate from the specified dimensions. Link body threads could be damaged.

   Relock the locking rod (A) if link is not in use.

3.
   AGCPTJD0421-UN-02NOV15

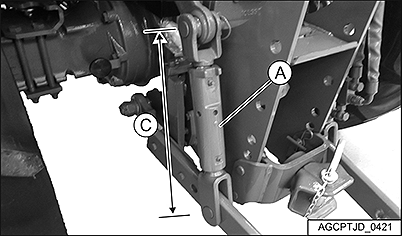

   Adjust right-hand or left-hand link to level implement side to side: Slide up the sleeve (A) then turn it clockwise to raise draft link or counterclockwise to lower it.

   After adjustment of lower level align the slot in the sleeve (A) with the pin in the rod to prevent turning of parts during operation.

   Length (C) of links must be kept within the following limits:

   • Minimum length 430 mm (16.9 in.)
   • Maximum length 560 mm (22.1 in.)



---
