Connecting Cylinder Hoses

  1. CAUTION:

    X9811
    X9811-UN-23AUG88

    Escaping fluid under pressure can penetrate the skin causing serious injury. Avoid the hazard by relieving pressure before disconnecting hydraulic or other lines. Tighten all connections before applying pressure. Search for leaks with a piece of cardboard. Protect hands and body from high pressure fluids.

    If an accident occurs, see a doctor immediately. Any fluid injected into the skin must be surgically removed within a few hours or gangrene may result. Doctors unfamiliar with this type of injury should reference a knowledgeable medical source. Such information is available from Deere & Company Medical Department in Moline, Illinois, U.S.A.


  2. AT19096
    AT19096-UN-06MAY08

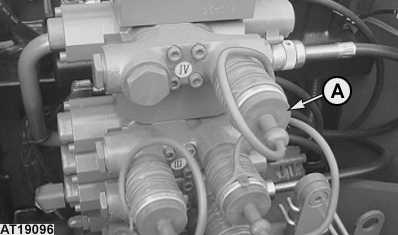

    Pull dust plugs (A) from couplers.


  3. Make sure hose end and coupler receptacles are clean.

  4. AT19097
    AT19097-UN-06MAY08

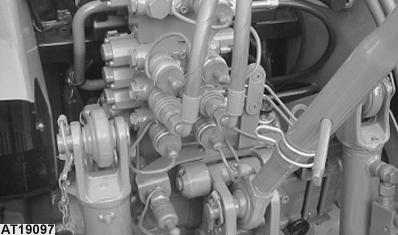

    Check hoses to see which is used for extending cylinder. This hose must be connected to the couplers in order to extend cylinder when SCV levers are moved rearward or inward.


  5. CAUTION: Hydraulic hoses can fail due to physical damage, kinks, age and exposure. Check hoses regularly. Replace damaged hoses.

    AT19098
    AT19098-UN-06MAY08

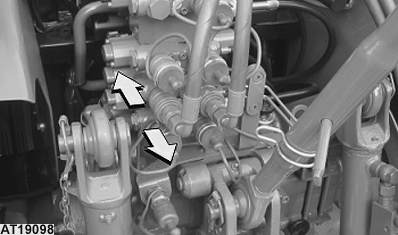

    To connect each hose, push hose tip firmly into coupler receptacle.


  6. Pull lightly on hose to make sure connection is tight.
