Jack Up the Tractor - Lifting Points

The illustrations show the recommended lifting points for jacking up the tractor. Use a stable lifting jack with sufficient lifting force. See Specifications and Loads and Weights in Section 150.

Raise rear of tractor:

AGCPTJD0435-UN-17OCT13

Wooden Wedges

LX1054633-UN-21DEC11

Raise Rear of Tractor

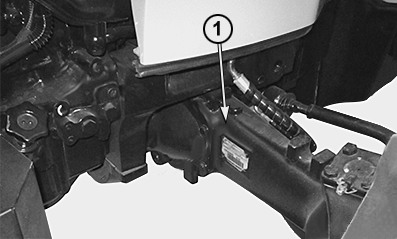

1 - Wooden Wedges

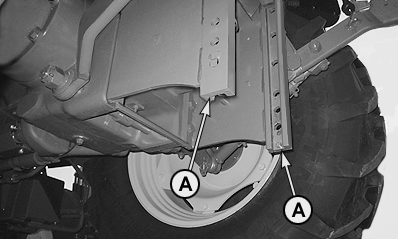

A - Raise Rear of Tractor

Raise front of traktor:

AGCPTJD0436-UN-17OCT13

AGCPTJD0437-UN-17OCT13

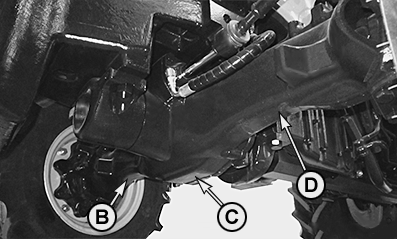

B - Raise Right End of Axle, e.g. to Remove Right Front Wheel

C - Raise Center of Axle (Use Wooden Wedges to Prevent Axle from Tilting)

D - Raise Left End of Axle, e.g. to Remove Left Front Wheel

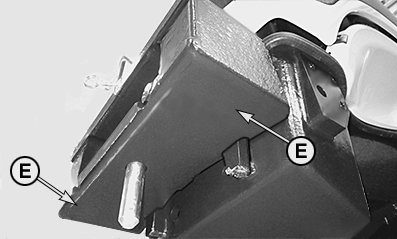

E - Raise Front End of Tractor under the Basic Weight

CAUTION:

JT07211-UN-14DEC06

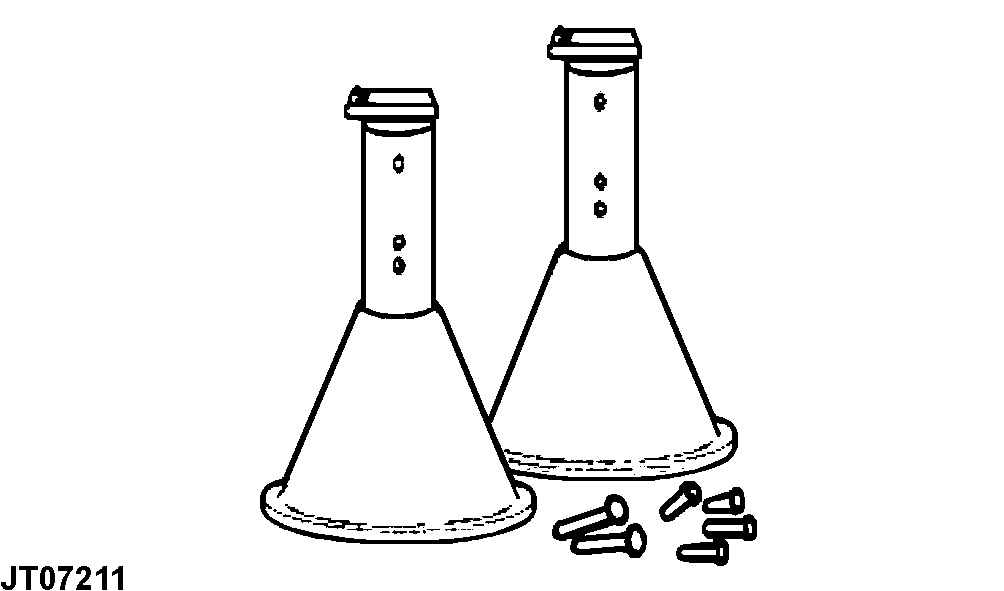

JT02043 und JT02044 Support Stands

JT02043 - Support Stand, 482 to 736 mm (19 to 29 in.)

JT02044 - Support Stand, 863 to 1117 mm (34 to 44 in.)

Jack up tractor on firm, level ground only.

Before doing any further work on the tractor, first secure it using suitable support stands. The special John Deere tools shown can be used for this purpose. These support stands are available from your John Deere dealer.
