Observe Electrical Service Precautions

CAUTION:

TS204
TS204-UN-15APR13

AGCPTJD0443
AGCPTJD0443-UN-16DEC13

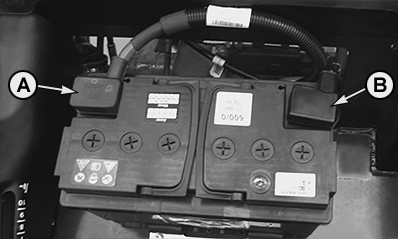

Keep all sparks and flames away from batteries, as gas given off by electrolyte is explosive. To avoid sparks, connect negative (ground) cable (B) last and disconnect it first. When using a booster battery, follow instructions in Section 40, Operating the Engine.

To avoid shocks and burns, disconnect battery negative (ground) cable (B) before servicing any part of the electrical system, and then remove positive cable (A) if removing battery.

Keep all electrical shields in place.

CAUTION: Depending on the manufacturers, the arrangement of battery connections may differ.

Pay close attention to the symbols marked on the battery.

To avoid sparks, connect negative (ground) cable last and disconnect it first.

OULXBER,000226D-19-20131029
