Adjusting the Head Lights

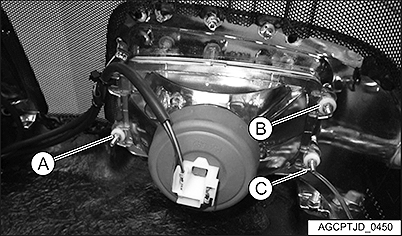

  1. AGCPTJD0450
    AGCPTJD0450-UN-02NOV15

    Open the hood.


  2. Turn nuts (A) and (B) counterclockwise to adjust the light upward or clockwise to adjust the light downward.

  3. To adjust the light towards the inside, turn nut (A) counterclockwise and nuts (B) and (C) clockwise. Always turn nuts (B) and (C) synchronous to the opposite direction nut (A) was turned.

  4. To adjust the light towards the outside, turn nut (A) clockwise and nuts (B) and (C) counterclockwise. Always turn nuts (B) and (C) synchronous to the opposite direction nut (A) was turned.

  5. Close hood and check the adjustment using a head light tester.
