Replace Head Light Bulbs

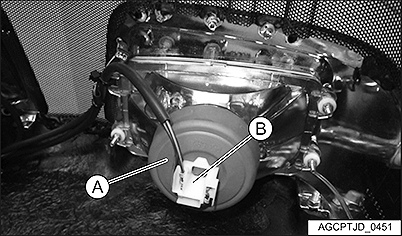

  1. AGCPTJD0451
    AGCPTJD0451-UN-02NOV15

    Turn OFF ignition.


  2. Remove connector (B) from bulb socket.

  3. Remove dust protector cap (A).

  4. Remove bulb.

  5. Install new bulb, protector cap (A) and connector (B).

OULXBER,0002270-19-20131030
