Replace Clearance-, Brake- and Turn Signal Light Bulbs

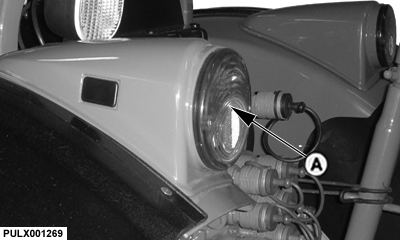

  1. PULX001269
    PULX001269-UN-03SEP08

    Turn OFF ignition.


  2. Unscrew the two screws and remove lens (A).

  3. Push the bulb into the socket against the spring force and turn it to unlock. Release bulb and pull it out of the socket.

  4. Slide new bulb into the socket, push it inside against the spring and then turn to lock it.

  5. Clean and reinstall the lens (A).
