Replace Rear Working Light Bulb

1.

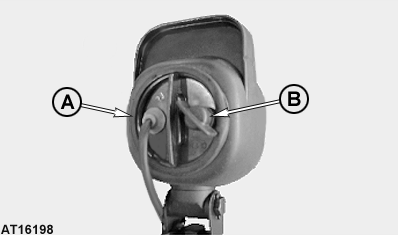

   AT16198-UN-07FEB03

   A - Working Light

   B - Cap

   Turn OFF ignition.

---




2. Remove cap (B), push the bulb into the socket against the spring force and turn it to unlock. Release bulb and pull it out of the socket.

3. Slide new bulb into the socket, push it inside against the spring and then turn to lock it. Clean lens and install cap (B).
