Operating Roll-Over Protective Structure

AGCPTJD0378-UN-23OCT13

AGCPTJD0379-UN-11JUL13

CAUTION: Make certain all parts are installed correctly if roll-over protective structure (ROPS) is loosened or removed for any reason. Tighten mounting bolts to proper torque.

The protection offered by ROPS will be impaired if ROPS is subjected to structural damage, as in an overturn incident, or is in any way altered by welding, bending, drilling or cutting. A damaged ROPS should be replaced, not reused. Any alteration to the ROPS must be approved by the manufacturer.

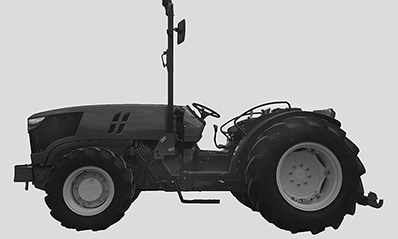

Always keep upper part of ROPS pinned in vertical position (as pictured) when operating tractor. If tractor is operated with ROPS folded (e.g. to enter a low building) drive with extreme caution.

Do not use a seat belt if operating with ROPS folded down or without ROPS.

Fold the ROPS up again as soon as the tractor is operated under normal conditions.

To lower ROPS:

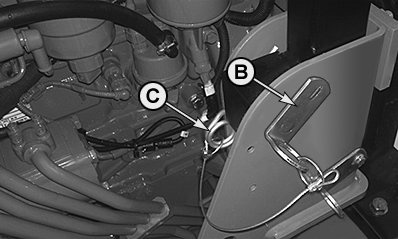

1. Remove quick-lock pins (C) and headed pins (B).

2. Lower ROPS onto stops.

3. Reinstall pins (B) and (C) to lock ROPS in down position.

Folding ROPS into operating position:

1. Remove quick-lock pins (C) and headed pins (B).

2. Lift ROPS to position shown. Install pins (B) and quick-lock pins (C).
