Replace Fuel Strainer

AGCPTJD0552-UN-16DEC13

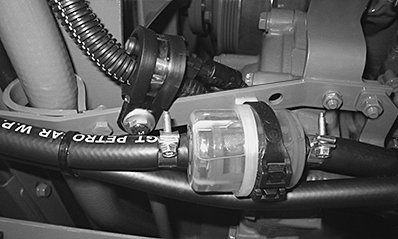

1. Clean area around the strainer, located between cab and main fuel tank.

2. Loosen the clamps to release the used strainer from the pipes.

3. Collect any diesel still in the supply pipe.

4. Take care not to introduce any impurities into the fuel circuit during this operation.

5. Fit the new strainer in place of the old one.

6. Bleed the air from the fuel circuit.
