Adjust PTO Clutch Linkage

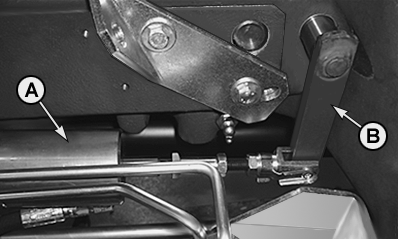

AGCPTJD0518
AGCPTJD0518-UN-15JAN14

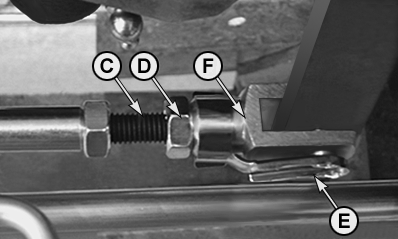

AGCPTJD0519
AGCPTJD0519-UN-15JAN14

A - Aktuator

B - Clip pin

C - Lock nut

D - Arm

E - Rod

F - Yoke

  1. Loosen the nut (D).

  2. Remove the pin E from the fork (F).

  3. Move the Pto lever B to the left until it meets the stroke end position (Pto bearing is in contact with the PTO clutch fingers).

  4. Keeping the Pto lever (B) in position, turn the fork (F) so that the hole of the fork (F) is aligned with the one of the Pto lever (B).

    Starting from this point, turn the fork (F) by 1,5 rotation to extend the rod (C).

  5. Match the Pto lever (B) and the fork (F) with the pin (E) and tighten the nut (D).
