Drain Water and Sediment from Fuel Tank

CAUTION: Never open the fuel system when engine is hot. Handle fuel with care, it is highly flammable. Do not replace fuel filter while smoking or when near open flame or sparks.

AGCPTJD0538
AGCPTJD0538-UN-17DEC13

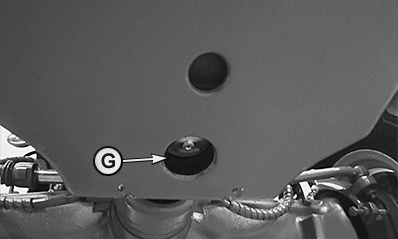

Open fuel tank drain screw (G) to bleed accumulated moisture and sediment from the fuel tank. Tighten drain screw (G) when clear fuel runs from fitting.

NOTE: Place a small container under drain screw (G) to catch draining fuel.

OULXBER,00022C8GL-19-20131218
