Engine Air Cleaner

AGCPTJD0543-UN-16DEC13

AGCPTJD0544-UN-16DEC13

IMPORTANT: Never run the engine without the primary filter element!

If the air cleaner indicator light glows during operation, remove and clean the primary filter element (C).

The service interval may be extended briefly, e.g. until the next suitable opportunity. Provided the filter is serviced properly, this will not adversely affect its performance.

The primary filter element (C) can be cleaned up to five times. Thereafter, or at the latest after 1500 hours of operation (or 2 years), it must be replaced.

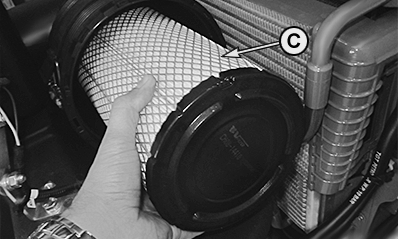

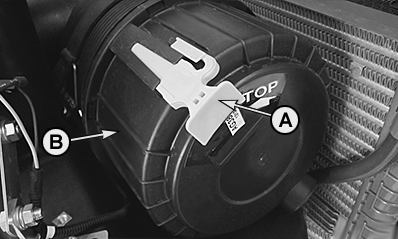

Open the hood and release lock (A). Remove cover (B). Pull the primary filter element (C) out of the filter housing.

Install in reverse order.

Put on cover (B) and engage lock (A).

IMPORTANT: Never close the hood or start the engine unless the filter is locked securely.
