Clean Radiator and Oil Cooler

AGCPTJD0545
AGCPTJD0545-UN-16DEC13

AGCPTJD0553
AGCPTJD0553-UN-16DEC13

NOTE: To facilitate the cleaning, remove air-conditioning system condenser. See Cleaning Air-Conditioning System Condenser in this Section.

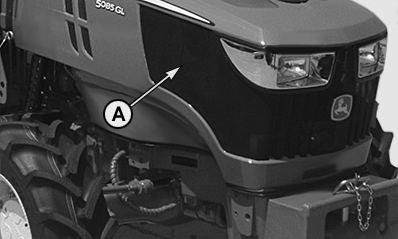

  1. Whenever dirt builds up on front grille (A), stop engine and brush clean.

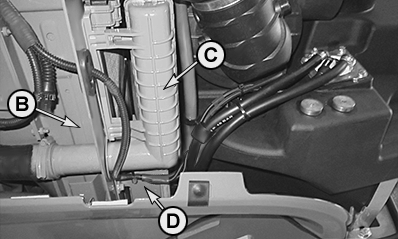

  2. Open the hood and see if dirt has built up on charge air cooler (C), radiator (B) and oil cooler (D). If so, remove it using a brush or compressed air.

  3. CAUTION: Reduce compressed air pressure to less than 210 kPa (2 bar; 30 psi) when using for cleaning purposes. Clear area of bystanders, guard against flying chips, and wear personal protection equipment including eye protection.

    If a more thorough cleaning is necessary, clean oil cooler (D) from behind with compressed air or water. Straighten any bent fins.
