Service Air Cleaner at Regular Intervals

AGCPTJD0546-UN-17DEC13

A dual element air cleaner is standard.

IMPORTANT: Check unloading valve frequently. Empty as often as needed to keep it from filling with dust. If valve is allowed to fill with dust, air cleaner element will become plugged rapidly.

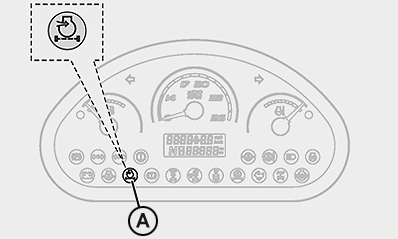

A dirty element is indicated when the air cleaner restriction light (A) is on. A dirty element can result in loss of power or excessive smoke.

Replace air cleaner elements at least once a year. Primary element should be replaced after having been cleaned five times.

The smaller secondary element should be removed only when being replaced, normally once a year.
