Observe Rear Wheel Tread Width Limitations

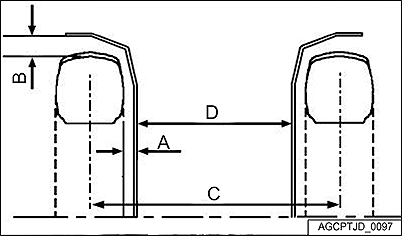

IMPORTANT: When changing rear tires, check clearance (A) and (B) between tires and fenders.

AGCPTJD0097-UN-02NOV15

Fixed Width (in mm)
D
5GL	5GV	5GN	5GF
600	470	540	620

Tire size	5075GL, 5085GL
	Minimum value
	A		B		C
	mm	in.	mm	in.	mm	in.
380/70 R20	15.0	0.59	39.8	1.57	1131	44.53
360/70 R24	15.0	0.59	65.2	2.57	1027	40.43
380/70 R24	16.2	0.64	44.2	1.74	1140	44.88
440/65 R24	62.0	2.44	34.0	1.34	1191	46.89

Tire size	5075GV, 5085GV
	Minimum value
	A		B		C
	mm	in.	mm	in.	mm	in.
280/85 R28	53.2	2.09	110.6	4.35	879	34.61
320/85 R28	37.7	1.48	76.1	3.00	879	34.61
250/85 R28	30.7	1.21	134.9	5.31	783	30.83
360/70 R24	58.2	2.29	133.0	5.24	956	37.64
340/85 R24	56.2	2.21	113.5	4.47	958	37.72
320/85 R24	20.2	0.80	126.4	4.98	848	33.39
360/70 R28	24.2	0.95	82.6	3.25	875	34.45
340/85 R28	23.7	0.93	61.1	2.41	927	36.50
9.5 R28	23.2	0.91	142.6	5.61	756	29.76

Tire size	5075GN, 5085GN
	Minimum value
	A		B		C
	mm	in.	mm	in.	mm	in.
280/85 R28	58.2	2.29	110.7	4.36	959	37.76
320/85 R28	42.7	1.68	76.3	3.00	959	37.76
340/85 R24	61.2	2.41	114.0	4.49	1038	40.87
340/85 R28	21.7	0.85	56.2	2.21	955	37.60
380/70 R24	48.7	1.92	115.0	4.53	1038	40.87
380/85 R28	25.7	1.01	30.0	1.18	1007	39.65
420/70 R28	71.7	2.82	35.3	1.39	1118	44.02

Tire size	5075GF, 5085GF, 5100GF
	Minimum value
	A		B		C
	mm	in.	mm	in.	mm	in.
320/85 R28	15.2	0.60	76.9	3.03	984	38.74
380/70 R24	16.0	0.63	11.4	0.45	1140	44.88
380/70 R28	66.7	2.63	73.0	2.87	1114	43.86
380/85 R28	39.2	1.54	30.0	1.18	1114	43.86
420/70 R24	23.2	0.91	80.3	3.16	1140	44.88
420/70 R28	29.7	1.17	35.4	1.39	1114	43.86
480/65 R24	46.7	1.84	82.1	3.23	1191	46.89
480/65 R28	58.7	2.31	33.1	1.30	1217	47.91
