Adjust Toe-In

With front-wheel drive axle

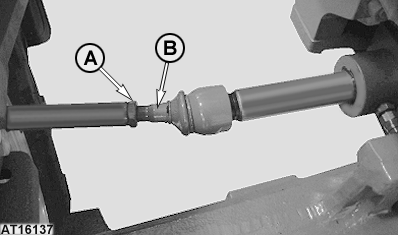

AT16137-UN-23JAN03

1. Loosen lock nuts (A) on both ends of tie rod.

2. Adjust both sides equally by rotating the inner rod (B) to lengthen or shorten tie rod, as needed to obtain toe-in of less than 2 mm (1/12 in.).

   Tie Rod Rotation	Approximate Change in Toe-in
   1/8 turn	4 mm (3/16 in.)
   1/4 turn	8 mm (3/8 in.)
   1/2 turn	16 mm (5/8 in.)

3. Tighten lock nuts (A) after adjustment.

Without front-wheel drive

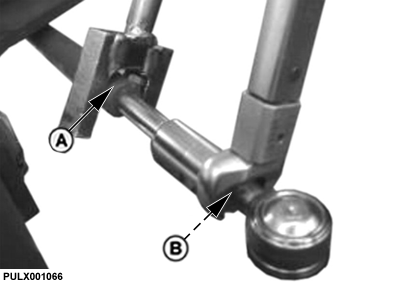

PULX001066-UN-18AUG08

1. Loosen lock nuts (B) on both ends of tie rod.

2. Turn inner tube (A) to lengthen or shorten tie rod until toe-in is 3 - 6 mm (0.12 - 0.24 in.).

   Tie Rod Rotation	Approximate Change in Toe-In
   1/2 turn	8 mm (0.31 in.)
   1 turn	16 mm (0.63 in.)

3. Tighten lock nuts (B) to 140 N•m (103 lb-ft).
