Steering Angle Adjustment

NOTE:

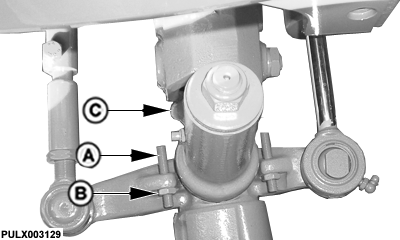

PULX003129
PULX003129-UN-10FEB09

For F and V (CA146262 Axle) Tractors

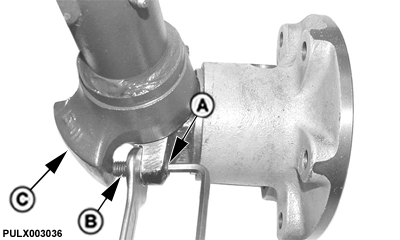

PULX003036
PULX003036-UN-04FEB09

For F and V (CA128971 Axle) Tractors

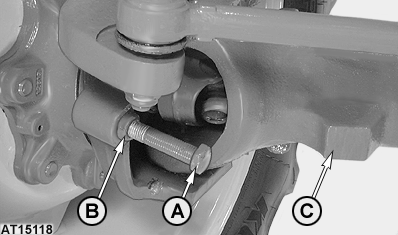

AT15118
AT15118-UN-24SEP03

Front axle with front-wheel drive

A - Adjusting screw

B - Lock nut

C - Stop

The tractor must be ready for operation when the steering angle is adjusted. Tires, fenders, implements and different types of ballast are factors that affect each tractor differently.

Steering angle must be the same on both sides.

CAUTION: The engine must be shut off when the adjustment is made. RISK OF CRUSHING!

  1. Lift front of tractor until the front axle can swing to its limits.

  2. Support the tractor safely.

  3. Move the right side of the axle upwards until it reaches the stop.

  4. Turn the steering to full lock in both directions.

  5. If necessary, loosen lock nut (B) and adjust steering angle as per specification using screw (A).

    ItemMeasurementSpecification
    Mechanical Front-Wheel Drive Tractors
    Minimum Clearance, Steering StopDistance25 mm 1 in.
    Two-wheel drive tractors
    Minimum Clearance, Steering Stop 1 Distance25 mm 1 in.
    Minimum Clearance, Steering Stop at Tie Rod 2 Distance23 mm 0.92 in.
    Minimum Clearance, Steering Stop at Steering Cylinder 2 Distance17 mm 0.68 in.

  6. Tighten lock nut to specified torque.

    ItemMeasurementSpecification
    Front axle without front-wheel driveTorque56 N˙m 41 lb-ft
    Front axle with front-wheel driveTorque150 Nm 110 lb-ft

  7. Repeat this procedure on the left side.

1 F and V, CA128971 axle
2 F and V, CA146262 axle
