Vehicle Controls (5GL)

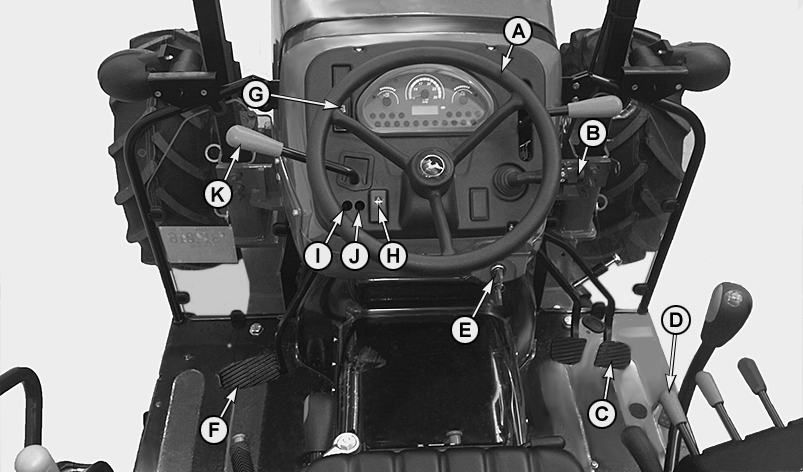

AGCPTJD0395-UN-12JUL13

5GL tractors

A - Steering Wheel

B - Light-, Horn and Turn Signal Switch

C - Left and Right Brake Pedals

D - Accelerator Pedal

E - Key Switch

F - Clutch Pedal

G - Beacon Light Switch (Open Station Tractors Only)

H - Hazard Warning Light Switch

I - Clock Setting Switch

J - Programming Switch

K - Reverser Lever

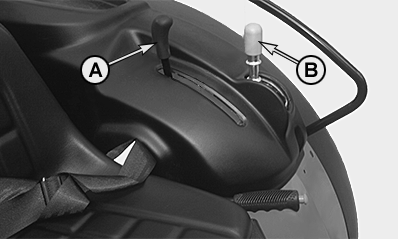

AGCPTJD0396-UN-12JUL13

A - PTO Mode Selector Lever (Independent or Ground Speed)

B - PTO Engagement Lever

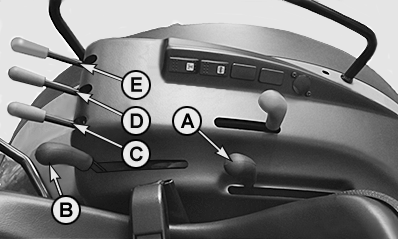

AGCPTJD0397-UN-11JUL13

A - Hitch Load Control Lever

B - Hitch Position Control Lever

C - First Selective Control Valve Lever

D - Second Selective Control Valve Lever

E - Third Selective Control Valve Lever

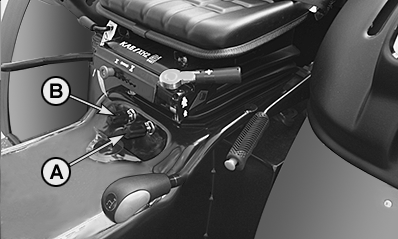

AGCPTJD0401-UN-12JUL13

A - Adjusting Knob - Hitch Rate-Of-Drop Valve

B - Adjusting Knob - Hitch Sensitivity Control Valve

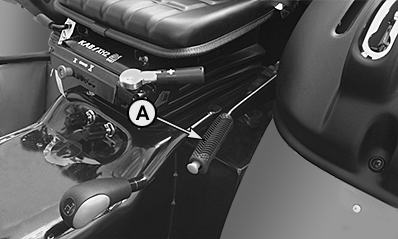

AGCPTJD0400-UN-12JUL13

A - Park Brake Lever

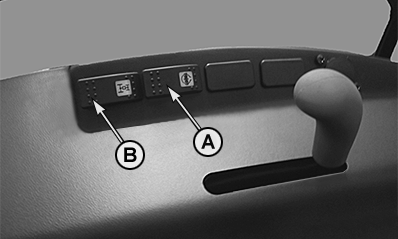

AGCPTJD0399-UN-12JUL13

A - Differential Lock Switch

B - Front-Wheel Drive Switch

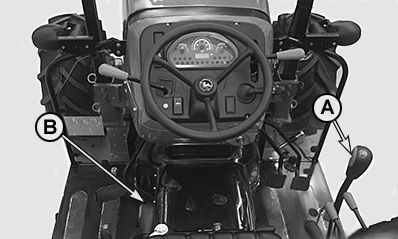

AGCPTJD0398-UN-12JUL13

A - Gear Shift Lever (Mechanically Version Shown)

B - Range Shift Lever

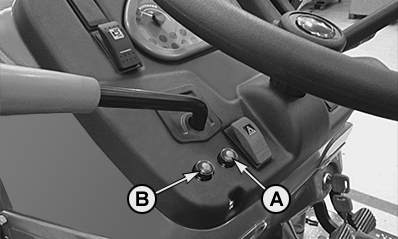

AGCPTJD0405-UN-10JUL13

A - Program Switch

B - Clock Adjust and Hour Meter Switch
