Vehicle Controls (5GV, 5GN and 5GF)

AGCPTJD0395-UN-12JUL13

5GL tractors

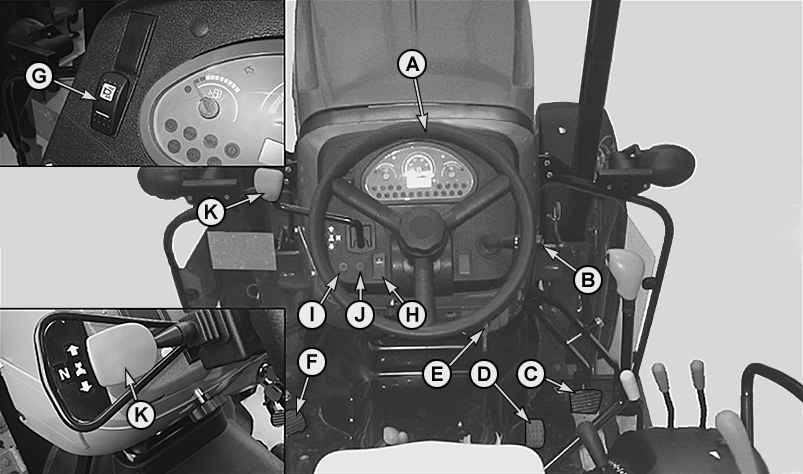

AGCPTJD0669-UN-29OCT14

5V, 5N and 5VF tractors

A - Steering Wheel

B - Light-, Horn and Turn Signal Switch

C - Left and Right Brake Pedals

D - Accelerator Pedal

E - Key Switch

F - Clutch Pedal

G - Beacon Light Switch (Open Station Tractors Only)

H - Hazard Warning Light Switch

I - Clock Setting Switch

J - Programming Switch

K - Reverser Lever

AGCPTJD0396-UN-12JUL13

A - PTO Mode Selector Lever (Independent or Ground Speed)

B - PTO Engagement Lever

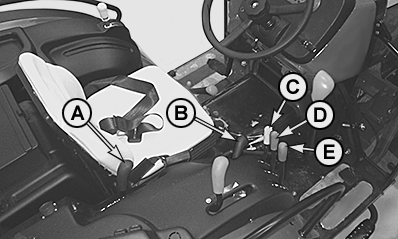

AGCPTJD0595-UN-24OCT14

A - Hitch Load Control Lever

B - Hitch Position Control Lever

C - First Selective Control Valve Lever

D - Second Selective Control Valve Lever

E - Third Selective Control Valve Lever

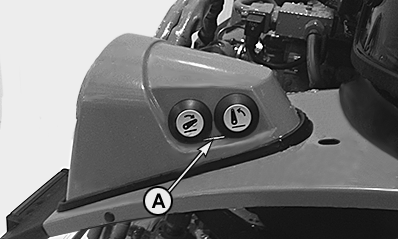

AGCPTJD0603-UN-24OCT14

A - Hitch remote control switches (tractors with EHS II only)

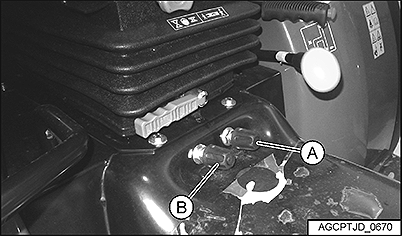

AGCPTJD0670-UN-02NOV15

A - Adjusting Knob - Hitch Rate-Of-Drop Valve

B - Adjusting Knob - Hitch Sensitivity Control Valve

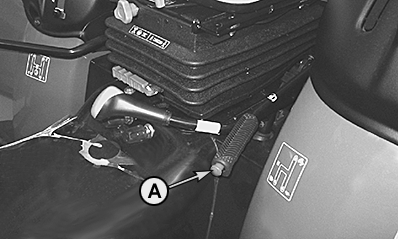

AGCPTJD0671-UN-29OCT14

A - Park Brake Lever

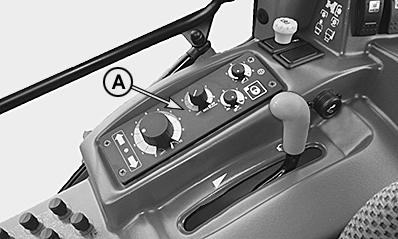

AGCPTJD0596-UN-24OCT14

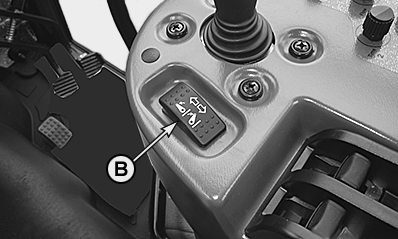

AGCPTJD0597-UN-24OCT14

A - Electronic hitch control panel

B - Raise/Lower Switch

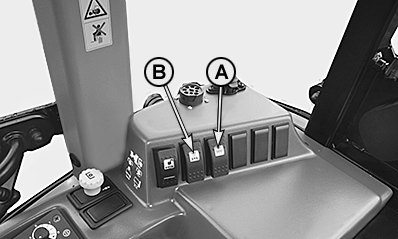

AGCPTJD0599-UN-24OCT14

A - Differential Lock Switch

B - Front-Wheel Drive Switch

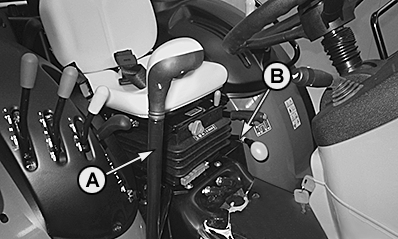

AGCPTJD0598-UN-24OCT14

A - Gear Shift Lever (Mechanically Version Shown)

B - Range Shift Lever

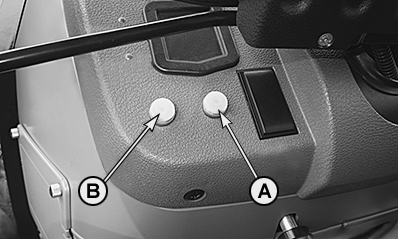

AGCPTJD0600-UN-24OCT14

A - Program Switch

B - Clock Adjust and Hour Meter Switch

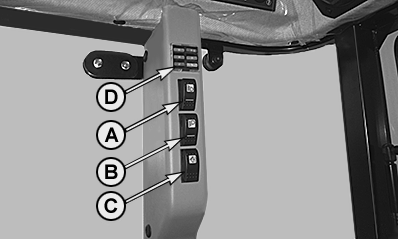

AGCPTJD0601-UN-24OCT14

5Gv, 5GN and 5GF with cab

A - Front Roof Worklight Switch

B - Rear Roof Worklights Switch

C - Wiper and Washer Switch

D - Fuse box (CAB)
