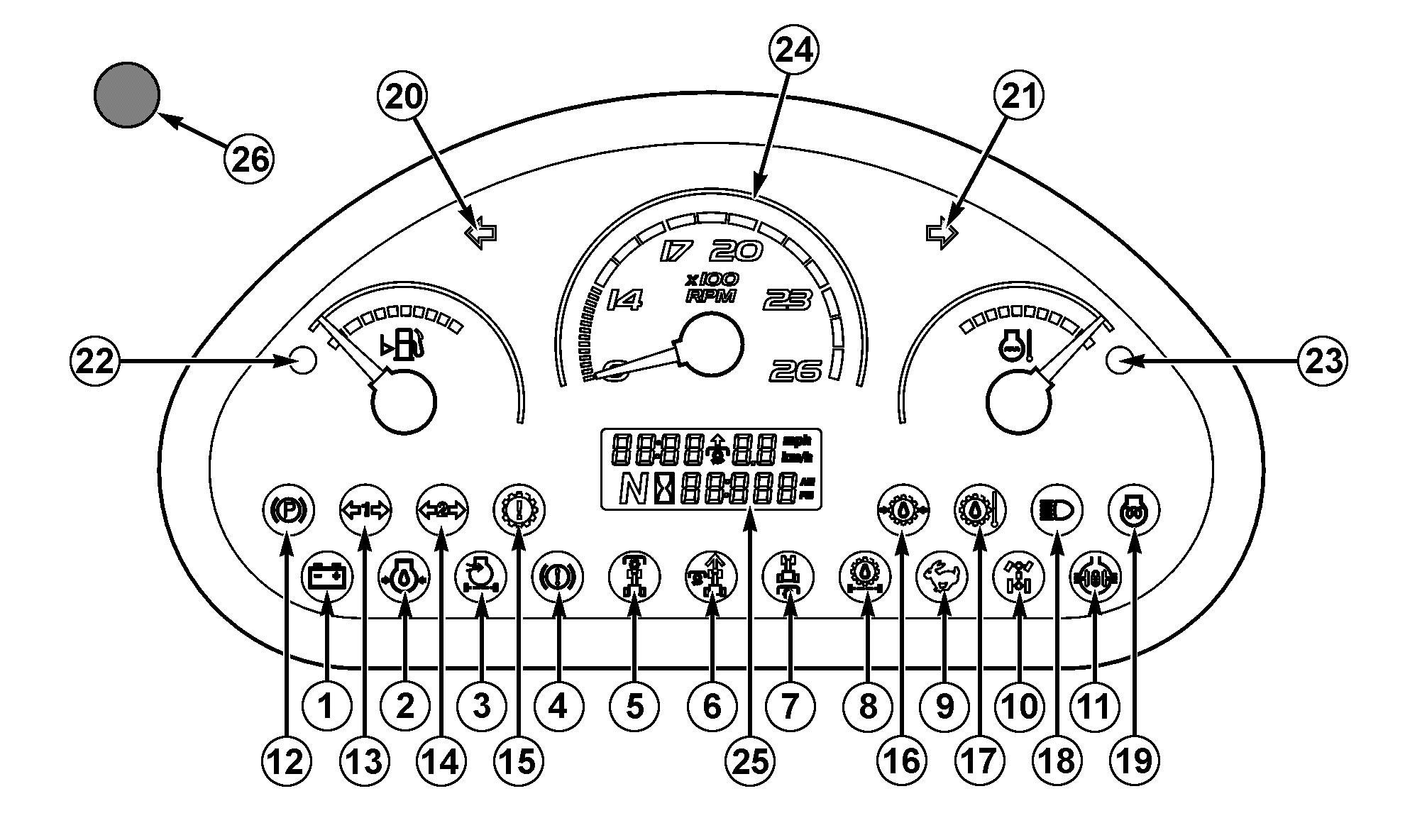

Indicator Lights and Displays

AGCPTJD0714
AGCPTJD0714-UN-30OCT14

  1. Alternator Indicator Light - Comes on if there is a problem in the charging system.
  2. Engine Oil Pressure Indicator Light - Comes on when engine oil pressure is low.
  3. Air Cleaner Restriction Indicator Light - Comes on when engine air cleaner is clogged.
  4. Brake Oil Level Indicator Light - Comes on when the brake oil level is low.
  5. Front PTO Indicator Light - Comes on when the front PTO is switched on.
  6. Ground Drive PTO Indicator Light - Comes on when the ground drive PTO is activated.
  7. Rear PTO Indicator Light - Comes on when the rear PTO is switched on.
  8. Transmission Oil Filter indicator light - Comes on when the transmission oil filter is clogged.
  9. High Speed Indicator Light - Comes on when electrohydraulic Hi-Lo transmission is in Hi mode.
  10. Front-wheel drive indicator light - Comes on when front-wheel drive is switched on.
  11. Differential lock indicator light - Comes on when differential lock is switched on.
  12. Park brake Indicator Light - Comes on when the park brake is activated.
  13. Turn Signal Indicator Light (first trailer).
  14. Turn Signal Indicator Light (second trailer).
  15. Transmission Failure Light - For PowrReverser transmission only.
  16. Transmission Low Oil Pressure Light - Comes on when transmission oil pressure is low.
  17. Transmission Oil Temperature Light - Comes on when Oil temperature is high.
  18. High Beam Indicator Light - Comes on when switch is in “high beam” position.
  19. Preheater Indicator Light - Indicates that the preheater is activated, turn key switch to start position only when preheating sequence has finished.
  20. Flashing indicator light on left - Starts flashing when left turn signal light or hazard warning lights are switched on.
  21. Flashing indicator light on right - Starts flashing when right turn signal light or hazard warning lights are switched on.
  22. Fuel Level Warning Light - Comes on when fuel level is low.
  23. Engine Coolant Temperature Warning Light - Comes on when coolant temperature is high.
  24. Tachometer - Indicates crankshaft speed in revolutions per minute.
  25. Digital Display - Displays information for the operator.
  26. Trailer brake valve warning light (CUNA version only)
