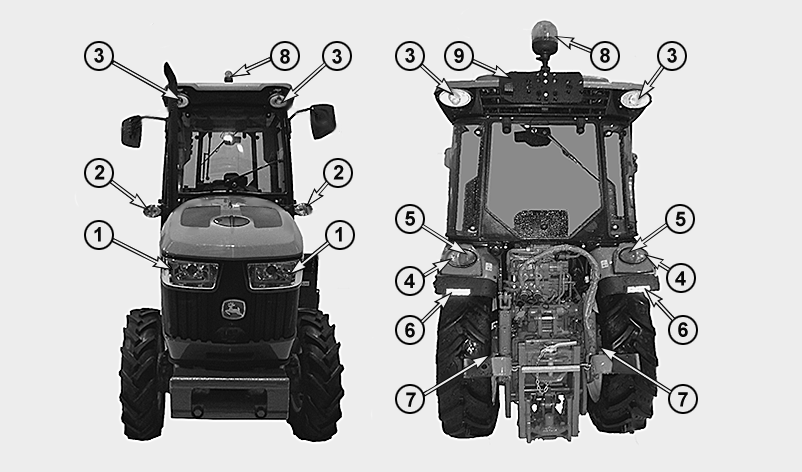

Total View - Lights (5GV with cab)

AGCPTJD0604-UN-24OCT14

1 - Headlights, High- and Low Beam

2 - Front Turn Signal and Clearance Lights

3 - Worklights

4 - Rear Turn-Signal Lights

5 - Tail Lights and Brake Lights

6 - Reflectors

7 - Reflectors

8 - Beacon Light

9 - License Plate Light

CAUTION: Never use worklights on public roads.

Clean all light lenses before driving on a public roads.

NOTE: If a bulb on one side is replaced, also replace the bulb on the other side.
