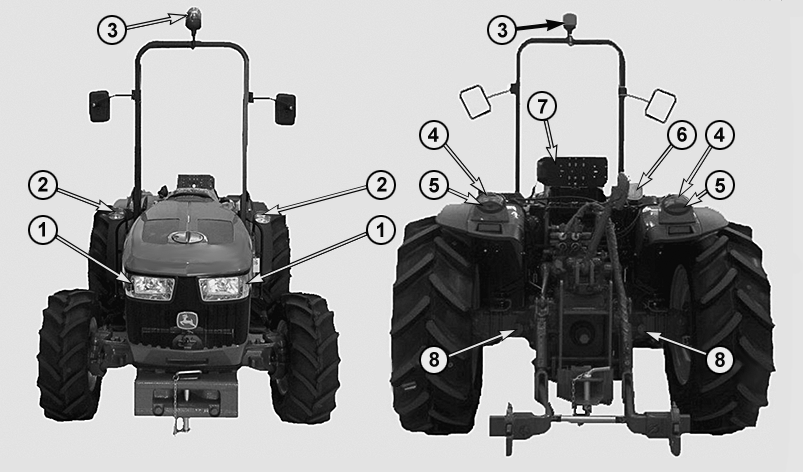

Total View - Lights (5GF with 2-post ROPS)

AGCPTJD0527-UN-17DEC13

1 - Headlights, High- and Low Beam

2 - Front Turn Signal and Clearance Lights

3 - Beacon Light

4 - Rear Turn-Signal Lights

5 - Tail Lights and Brake Lights

6 - Worklights

7 - License Plate Light

8 - Reflectors

CAUTION: Never use worklights on public roads.

Clean all light lenses before driving on a public roads.

NOTE: If a bulb on one side is replaced, also replace the bulb on the other side.
