Lights

NOTE:

AGCPTJD0616
AGCPTJD0616-UN-27OCT14

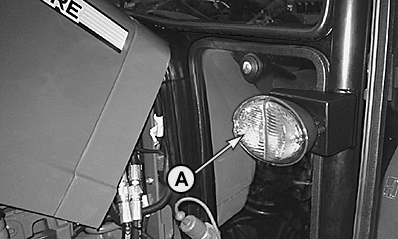

Tractor with Cab

AGCPTJD0388
AGCPTJD0388-UN-16OCT13

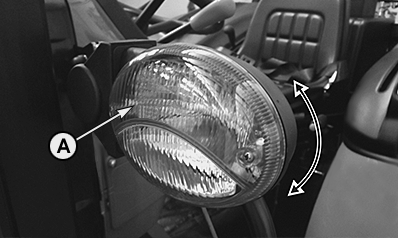

Tractor without Cab

AGCPTJD0385
AGCPTJD0385-UN-16OCT13

A - Headlights

For tractors with open operator's station, front lights (A) can be folded in to avoid contact with tree branches during work in orchards or similar.

Turn front lights (A) to the correct position before driving on public roads.

AGCPTJD0385
AGCPTJD0385-UN-16OCT13

AGCPTJD0383
AGCPTJD0383-UN-16OCT13

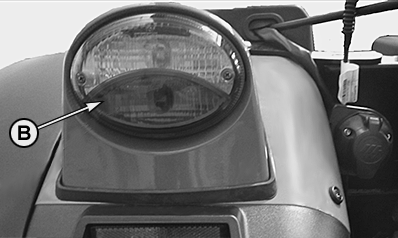

A - Tail lights

Tail lights (B) are switched on when light switch is turned to position (1) or (2).
