Light Switch and Turn Signal Switch

AGCPTJD0617-UN-27OCT14

Tractors with cab

AGCPTJD0383-UN-16OCT13

AGCPTJD0384-UN-16OCT13

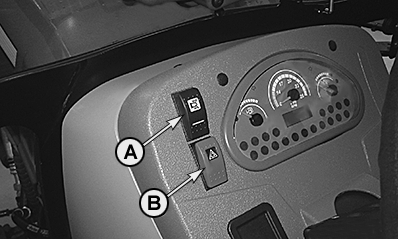

A - Beacon Light Switch

B - Hazard Warning Light Switch

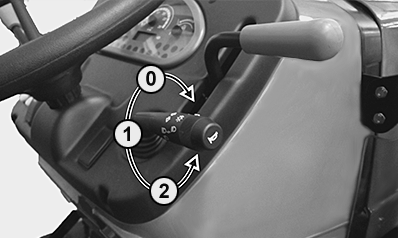

Position	Function
0	OFF (fully rotated clockwise)
1	First position (counterclockwise) - Dashboard lights, tail lights and license plate light ON
Center position	OFF
2	Second position (counterclockwise) - Low beam, dashboard lights, tail lights and license plate light ON

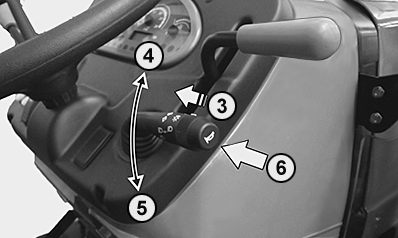

2+3	Second position (counterclockwise) and pulling upward in the direction of the steering wheel switches Hi beam ON Pull again an release switch to turn OFF Hi beam.
4	Left turn signal lights ON
5	Right turn signal lights ON
6	Push switch to activate horn

AGCPTJD0390-UN-16OCT13

AGCPTJD0391-UN-21OCT13

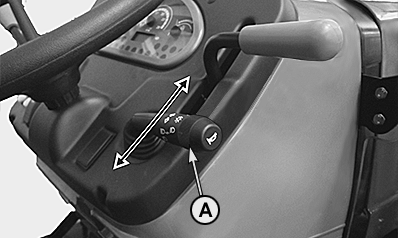

A - Turn Signal Switch

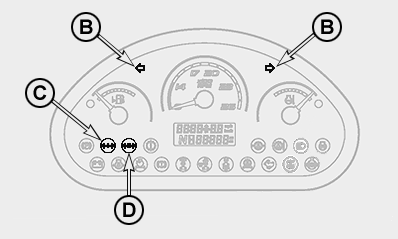

B - Turn Signal Indicator Lights

C - Turn Signal Indicator Light for First Trailer

D - Turn Signal Indicator Light for Second Trailer

NOTE: When towing one trailer, the indicator light (C) flashes. When towing two trailers, the indicator lights (C) and (D) are flashing.
