Worklight Switches
CAUTION: Do not switch on worklights when driving on public
roads.
AT16198-UN-07FEB03

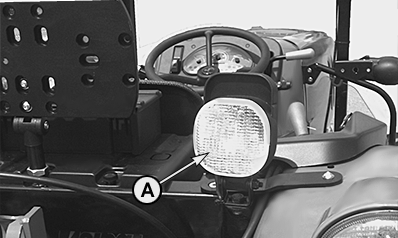

AGCPTJD0386-UN-16OCT13
1 - Rear Worklight
2 - Worklight Switch
On tractors with open operator's station the work light (A) is switched on by work light switch (B).
Adjust the work lights (A) by turning them to the desired position.
AGCPTJD0715-UN-07NOV14
Tractor with cab
On tractors with cab, the work light is switched on by the work light switch in the post on the right-hand side, see “Operator's Cab Switches” in Section “Operator's Station and Cab”.
AGCPTJD0622-UN-27OCT14
Tractors with cab
A - Front work light switch
B - Rear work light switch
C - Windshield wiper and washer switch (see Section 25)
On tractors with cab the work light switches are located in the post on the right-hand side.|
OULXBER,00024E6-19-20141023 |
