Emergency Exits

In an emergency, exit the cab through the cab doors. It is also possible to exit the cab through the open rear window.

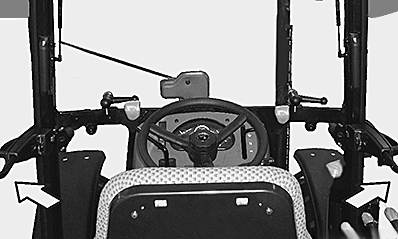

Exit through doors

LX1054642
LX1054642-UN-21DEC11

AGCPTJD0621
AGCPTJD0621-UN-27OCT14

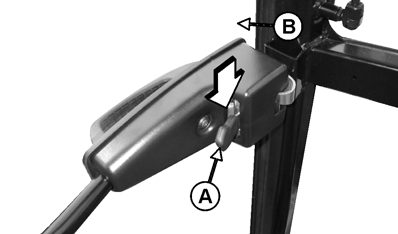

To open, pull down latch (A) and push door (B) outwards.

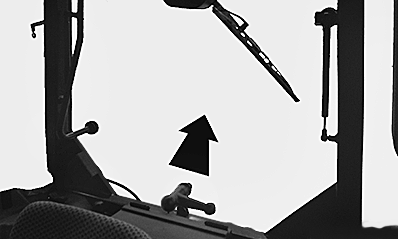

Exit through rear window

AGCPTJD0619
AGCPTJD0619-UN-27OCT14

AGCPTJD0620
AGCPTJD0620-UN-27OCT14

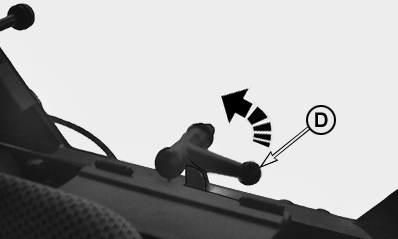

To open, turn lever (D) to the left and push window outwards.

OULXBER,00024E9-19-20141024
