Seat Adjustment (5GV, 5GN and 5GF)

Adjusting Operator's Seat Position (Standard and Comfort Seat) for Tractors with Cab

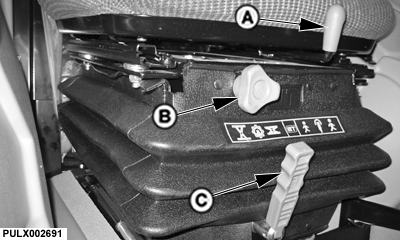

PULX002691-UN-06NOV08

With Cab

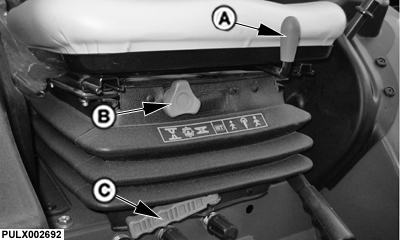

PULX002692-UN-06NOV08

Open Operator's Station

Seat fore-and-aft adjustment:

Move lever (A) and slide seat forward or backward to desired position.

Seat height adjustment:

While sitting on the seat turn knob (B).

Seat suspension adjustment:

Turn the adjusting lever (C) to the desired vertical travel range.

Adjusting Operator's Seat Position (Air Suspension Seat) for Tractors with Cab

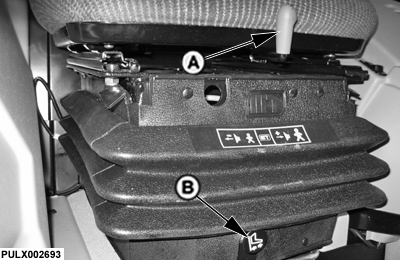

PULX002693-UN-06NOV08

Move the lever (A) and slide seat forward or backward to desired position.

To adjust the seat height, operate the lower knob (B).
